OSDL::Events::MouseHandler Class Reference

#include <OSDLMouseHandler.h>

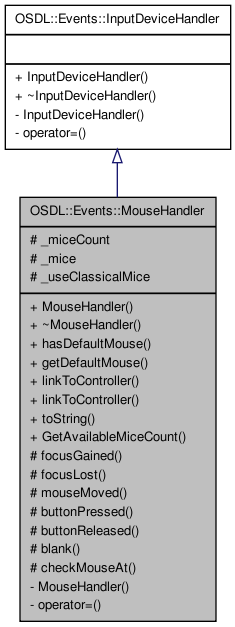

Inheritance diagram for OSDL::Events::MouseHandler:

[legend]

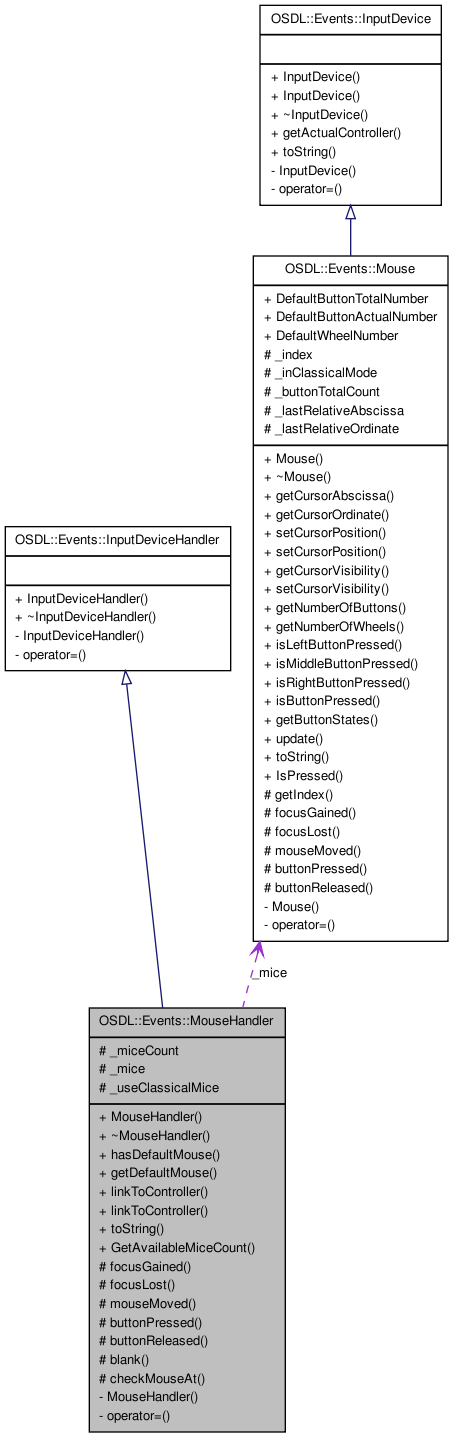

Collaboration diagram for OSDL::Events::MouseHandler:

[legend]

List of all members.

Detailed Description

Handler for mice connected to the system, if any.

Manages the mouse position, its up to three buttons, and a possible mouse wheel (up/down).

Note:: The UseMouse flag must be specified in the call to CommonModule::getCommonModule so that mouse support is enabled.
No multiple mice are managed for the moment.

Definition at line 52 of file OSDLMouseHandler.h.


Public Member Functions
	MouseHandler (bool useClassicalMice=true) throw ( InputDeviceHandlerException )
	Constructs a new mouse handler.
virtual	~MouseHandler () throw ()
	Virtual destructor.
virtual void	linkToController (OSDL::MVC::Controller &controller) throw ( MouseException )
	Links the default mouse to specified controller, so that any further mouse-related event will be sent to this controller.
virtual void	linkToController (MouseNumber index, OSDL::MVC::Controller &controller) throw ( MouseException )
	Links the specified mouse to specified controller, so that any further mouse-related event will be sent to this controller.
virtual const std::string	toString (Ceylan::VerbosityLevels level=Ceylan::high) const throw ()
	Returns an user-friendly description of the state of this object.
Static Public Member Functions
static MouseNumber	GetAvailableMiceCount () throw ()
	Returns the number of available mice, i.e.
Protected Member Functions
virtual void	focusGained (const FocusEvent &mouseFocusEvent) const throw ()
	Called whenever a mouse focus is gained by the application.
virtual void	focusLost (const FocusEvent &mouseFocusEvent) const throw ()
	Called whenever a mouse focus is lost by the application.
virtual void	mouseMoved (const MouseMotionEvent &mouseMovedEvent) const throw ()
	Called whenever a mouse is moved, so that its controller, if any, is notified.
virtual void	buttonPressed (const MouseButtonEvent &mouseButtonPressedEvent) const throw ()
	Called whenever a mouse button was pressed, so that its controller, if any, is notified.
virtual void	buttonReleased (const MouseButtonEvent &mouseButtonReleasedEvent) const throw ()
	Called whenever a mouse button was released, so that its controller, if any, is notified.
virtual void	blank () throw ()
	Blanks this mouse handler, i.e.
virtual void	checkMouseAt (MouseNumber index) const throw ()
	Checks that the mouse at the specified index exists and is opened.
Protected Attributes
MouseNumber	_miceCount
	Records how many mice are known by this handler.
Mouse **	_mice
	Records all known mice.
bool	_useClassicalMice
	Tells whether complex mice (if false) or classical mice (if true) should be created.
Private Member Functions
	MouseHandler (const MouseHandler &source) throw ()
	Copy constructor made private to ensure that it will never be called.
MouseHandler &	operator= (const MouseHandler &source) throw ()
	Assignment operator made private to ensure that it will never be called.
Friends
class	OSDL::Events::EventsModule

Constructor & Destructor Documentation

MouseHandler::MouseHandler ( bool useClassicalMice = true ) throw ( InputDeviceHandlerException ) [explicit]

Constructs a new mouse handler.

Parameters:

useClassicalMice

tells whether detected mice should be managed as complex mice (powerful interface, but it requires the controller to take in charge this complexity) or classical mice (for usual needs, comes with preset behaviours which ease controller work).

Exceptions:

InputDeviceHandlerException

if the initialization of the mouse subsystem failed.

Definition at line 42 of file OSDLMouseHandler.cc.

MouseHandler::~MouseHandler ( ) throw () [virtual]

Virtual destructor.

Definition at line 78 of file OSDLMouseHandler.cc.

References blank().

OSDL::Events::MouseHandler::MouseHandler ( const MouseHandler & source ) throw () [explicit, private]

Copy constructor made private to ensure that it will never be called.

The compiler should complain whenever this undefined constructor is called, implicitly or not.

Member Function Documentation

void MouseHandler::linkToController ( OSDL::MVC::Controller & controller ) throw ( MouseException ) [virtual]

Links the default mouse to specified controller, so that any further mouse-related event will be sent to this controller.

Removes automatically any link previously defined between the mouse and any other controller.

Parameters:

controller

the OSDL controller which will be notified of mouse changes.

Exceptions:

MouseException

if the operation failed.

Definition at line 94 of file OSDLMouseHandler.cc.

References OSDL::Events::DefaultMouse.

void MouseHandler::linkToController	(	MouseNumber	index,
		OSDL::MVC::Controller &	controller
	)			throw ( MouseException ) `[virtual]`

Links the specified mouse to specified controller, so that any further mouse-related event will be sent to this controller.

Removes automatically any link previously defined between the mouse and any other controller.

Parameters:

	index	the index of the mouse to link, in case there are other mice than the main default one.
	controller	the OSDL controller which will be notified of mouse changes.

Exceptions:

MouseException

if the operation failed.

Definition at line 104 of file OSDLMouseHandler.cc.

References _mice, _miceCount, GetAvailableMiceCount(), and OSDL::Video::Pixels::toString().

const string MouseHandler::toString ( Ceylan::VerbosityLevels level = Ceylan::high ) const throw () [virtual]

Returns an user-friendly description of the state of this object.

Parameters:

level

the requested verbosity level.

Note:: Text output format is determined from overall settings.

See also:: Ceylan::TextDisplayable

Definition at line 138 of file OSDLMouseHandler.cc.

References _mice, _miceCount, and OSDL::Video::Pixels::toString().

Referenced by OSDL::Events::EventsModule::toString().

MouseNumber MouseHandler::GetAvailableMiceCount ( ) throw () [static]

Returns the number of available mice, i.e.

the mice currently attached to the system.

Returns:: always one, for the moment.

Definition at line 181 of file OSDLMouseHandler.cc.

Referenced by linkToController().

void MouseHandler::focusGained ( const FocusEvent & mouseFocusEvent ) const throw () [protected, virtual]

Called whenever a mouse focus is gained by the application.

Parameters:

mouseFocusEvent

the mouse event about gained focus.

Note:: Expected to be triggered by the EventsModule.

Definition at line 199 of file OSDLMouseHandler.cc.

References _mice, checkMouseAt(), OSDL::Events::DefaultMouse, and OSDL::Events::Mouse::focusGained().

Referenced by OSDL::Events::EventsModule::onMouseFocusGained().

void MouseHandler::focusLost ( const FocusEvent & mouseFocusEvent ) const throw () [protected, virtual]

Called whenever a mouse focus is lost by the application.

Parameters:

mouseFocusEvent

the mouse event about lost focus.

Note:: Expected to be triggered by the EventsModule.

Definition at line 217 of file OSDLMouseHandler.cc.

References _mice, checkMouseAt(), OSDL::Events::DefaultMouse, and OSDL::Events::Mouse::focusLost().

Referenced by OSDL::Events::EventsModule::onMouseFocusLost().

void MouseHandler::mouseMoved ( const MouseMotionEvent & mouseMovedEvent ) const throw () [protected, virtual]

Called whenever a mouse is moved, so that its controller, if any, is notified.

Note:: Expected to be triggered by the EventsModule.

Definition at line 234 of file OSDLMouseHandler.cc.

References _mice, checkMouseAt(), and OSDL::Events::Mouse::mouseMoved().

Referenced by OSDL::Events::EventsModule::onMouseMotion().

void MouseHandler::buttonPressed ( const MouseButtonEvent & mouseButtonPressedEvent ) const throw () [protected, virtual]

Called whenever a mouse button was pressed, so that its controller, if any, is notified.

Note:: Expected to be triggered by the EventsModule.

Definition at line 252 of file OSDLMouseHandler.cc.

References _mice, OSDL::Events::Mouse::buttonPressed(), and checkMouseAt().

Referenced by OSDL::Events::EventsModule::onMouseButtonPressed().

void MouseHandler::buttonReleased ( const MouseButtonEvent & mouseButtonReleasedEvent ) const throw () [protected, virtual]

Called whenever a mouse button was released, so that its controller, if any, is notified.

Note:: Expected to be triggered by the EventsModule.

Definition at line 271 of file OSDLMouseHandler.cc.

References _mice, OSDL::Events::Mouse::buttonReleased(), and checkMouseAt().

Referenced by OSDL::Events::EventsModule::onMouseButtonReleased().

void MouseHandler::blank ( ) throw () [protected, virtual]

Blanks this mouse handler, i.e.

makes it forget all previously known mice.

Definition at line 291 of file OSDLMouseHandler.cc.

References _mice, and _miceCount.

Referenced by ~MouseHandler().

void MouseHandler::checkMouseAt ( MouseNumber index ) const throw () [protected, virtual]

Checks that the mouse at the specified index exists and is opened.

Parameters:

index

the index of the mouse to check.

Note:: Stop in emergency the application if the check failed.

Definition at line 311 of file OSDLMouseHandler.cc.

References _mice, and _miceCount.

Referenced by buttonPressed(), buttonReleased(), focusGained(), focusLost(), and mouseMoved().

MouseHandler& OSDL::Events::MouseHandler::operator= ( const MouseHandler & source ) throw () [private]

Assignment operator made private to ensure that it will never be called.

The compiler should complain whenever this undefined operator is called, implicitly or not.

Friends And Related Function Documentation

friend class OSDL::Events::EventsModule [friend]

Definition at line 61 of file OSDLMouseHandler.h.

Member Data Documentation

MouseNumber OSDL::Events::MouseHandler::_miceCount [protected]

Records how many mice are known by this handler.

Definition at line 263 of file OSDLMouseHandler.h.

Referenced by blank(), checkMouseAt(), linkToController(), and toString().

Mouse** OSDL::Events::MouseHandler::_mice [protected]

Records all known mice.

A dynamic array is preferred to a list for performance reasons.

(read it as Mouse * _mice[])

Definition at line 275 of file OSDLMouseHandler.h.

Referenced by blank(), buttonPressed(), buttonReleased(), checkMouseAt(), focusGained(), focusLost(), linkToController(), mouseMoved(), and toString().

bool OSDL::Events::MouseHandler::_useClassicalMice [protected]

Tells whether complex mice (if false) or classical mice (if true) should be created.

Definition at line 283 of file OSDLMouseHandler.h.

The documentation for this class was generated from the following files:
