OSDL::Video::TwoDimensional::MouseCursor Class Reference

Encapsulates a mouse cursor. More...

#include <OSDLMouseCursor.h>

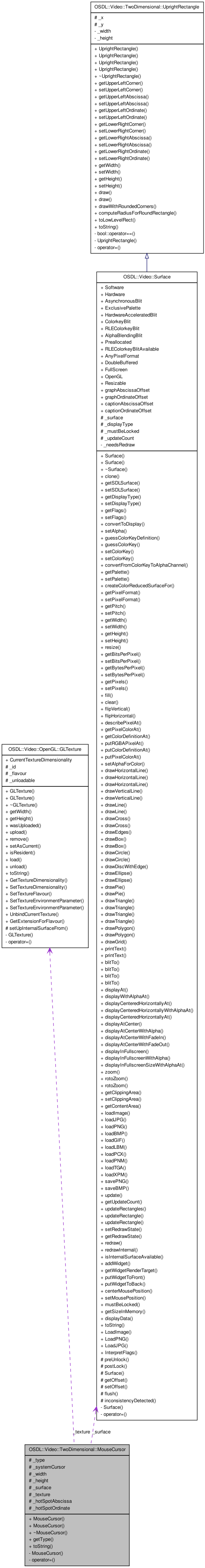

Collaboration diagram for OSDL::Video::TwoDimensional::MouseCursor:

Public Types
enum	CursorType { SystemCursor, BlittedCursor, TexturedCursor }
	Describes the different cursor types: SystemCursor: the cursor is black-and-white, and it is managed by the system directly, BlittedCursor: the cursor is defined by a surface, which is blitted automatically by OSDL whenever associated with a mouse, TexturedCursor: the cursor is rendered automatically by OSDL through OpenGL as a textured quad, whenever associated with a mouse. More...
Public Member Functions
	MouseCursor (Length width, Length height, const Ceylan::Uint8 &data, const Ceylan::Uint8 &mask, Coordinate hotSpotAbscissa, Coordinate hotSpotOrdinate)
	Creates a new system mouse cursor.
	MouseCursor (const Surface &cursorSurface, Coordinate hotSpotAbscissa, Coordinate hotSpotOrdinate)
	Creates a new OSDL-powered mouse cursor.
virtual	~MouseCursor () throw ()
	Virtual destructor.
CursorType	getType () const
	Returns the type of this mouse cursor.
virtual const std::string	toString (Ceylan::VerbosityLevels level=Ceylan::high) const
	Returns an user-friendly description of the state of this object.
Protected Attributes
CursorType	_type
	Type of this cursor.
LowLevelCursor *	_systemCursor
	Back-end cursor, for SystemCursor type.
Length	_width
	The width of the cursor, for SystemCursor only.
Length	_height
	The height of the cursor, for SystemCursor only.
Surface *	_surface
	The cursor shape, for BlittedCursor type.
OpenGL::GLTexture *	_texture
	The cursor shape, for TexturedCursor type.
Coordinate	_hotSpotAbscissa
	The abscissa of the cursor hot spot.
Coordinate	_hotSpotOrdinate
	The ordinate of the cursor hot spot.
Private Member Functions
	MouseCursor (const MouseCursor &source)
	Copy constructor made private to ensure that it will never be called.
MouseCursor &	operator= (const MouseCursor &source)
	Assignment operator made private to ensure that it will never be called.

Detailed Description

Encapsulates a mouse cursor.

There are two types of mouse cursors:

system (hardware-based) ones, which are black and white only
OSDL-powered ones, that are color cursors, and that are managed as specific surfaces/textured quads being rendered automatically, as soon as they are linked with a Mouse object.

System cursor shapes are specified thanks to background data and a mask, which both represent the same rectangle enclosing the cursor shape, with one bit per pixel, and a width which must be a multiple of 8. On a given coordinate, if the bit in the data is:

0, then if the bit in the mask is 0, the corresponding pixel will be transparent. If the bit in the mask is 1, the corresponding pixel is white
1, then if the bit in the mask is 0, the corresponding pixel will be the inverted cursor color, if possible, otherwise black. If the bit in the mask is 1, the corresponding pixel is black.

OSDL-powered cursor are specified as a colorkeyed surface. Depending on OpenGL being used or not, they are rendered as textured quads or as blitted surfaces.

All cursors must be associated with a hot-spot, which is the point of the cursor shape which will be aligned with the actual mouse pointer. Hence the user will have to align this hot-spot with the target onscreen area to click it, and the cursor shape will be blitted with an offset so that the hotspot matches the actual mouse pointer.

Definition at line 155 of file OSDLMouseCursor.h.

Member Enumeration Documentation

enum OSDL::Video::TwoDimensional::MouseCursor::CursorType

Describes the different cursor types:

SystemCursor: the cursor is black-and-white, and it is managed by the system directly,
BlittedCursor: the cursor is defined by a surface, which is blitted automatically by OSDL whenever associated with a mouse,
TexturedCursor: the cursor is rendered automatically by OSDL through OpenGL as a textured quad, whenever associated with a mouse.

Enumerator:

SystemCursor
BlittedCursor
TexturedCursor

Definition at line 176 of file OSDLMouseCursor.h.

Constructor & Destructor Documentation

MouseCursor::MouseCursor	(	Length	width,
		Length	height,
		const Ceylan::Uint8 &	data,
		const Ceylan::Uint8 &	mask,
		Coordinate	hotSpotAbscissa,
		Coordinate	hotSpotOrdinate
	)

Creates a new system mouse cursor.

Parameters:

	width	the width of the cursor-enclosing rectangle. The width must be a multiple of 8.
	height	the height of the cursor-enclosing rectangle.
	data	the bitplane describing the cursor shape. Its size must be width * height bits. The cursor takes ownership of this data.
	mask	the bitplane describing the cursor mask, which must have the same size as the data bitplane. The cursor takes ownership of this mask.
	hotSpotAbscissa	the abscissa of the hotspot, which must lie in the cursor-enclosing rectangle ( 0 <= hotSpotAbscissa < width ).
	hotSpotOrdinate	the ordinate of the hotspot, which must lie in the cursor-enclosing rectangle ( 0 <= hotSpotOrdinate < height ).

Exceptions:

MouseCursorException

if the operation failed.

Definition at line 77 of file OSDLMouseCursor.cc.

References _height, _hotSpotAbscissa, _hotSpotOrdinate, _systemCursor, _width, and OSDL::Utils::getBackendLastError().

MouseCursor::MouseCursor	(	const Surface &	cursorSurface,
		Coordinate	hotSpotAbscissa,
		Coordinate	hotSpotOrdinate
	)

Creates a new OSDL-powered mouse cursor.

Parameters:

	cursorSurface	a surface containing the cursor, which should have a colorkey or an alpha channel for transparent parts of the cursor. The cursor takes ownership of this surface.
	hotSpotAbscissa	the abscissa of the hotspot, which must lie in the cursor-enclosing rectangle ( 0 <= hotSpotAbscissa < surface width).
	hotSpotOrdinate	the ordinate of the hotspot, which must lie in the cursor-enclosing rectangle ( 0 <= hotSpotOrdinate < surface height).

Exceptions:

MouseCursorException

if the operation failed.

Definition at line 116 of file OSDLMouseCursor.cc.

References _texture, and OSDL::Audio::None.

MouseCursor::~MouseCursor ( ) throw () [virtual]

Virtual destructor.

Definition at line 160 of file OSDLMouseCursor.cc.

References _surface, _systemCursor, and _texture.

OSDL::Video::TwoDimensional::MouseCursor::MouseCursor ( const MouseCursor & source ) [explicit, private]

Copy constructor made private to ensure that it will never be called.

The compiler should complain whenever this undefined constructor is called, implicitly or not.
