OSDL::Video::TwoDimensional::Point3D Class Reference

#include <OSDLPoint3D.h>

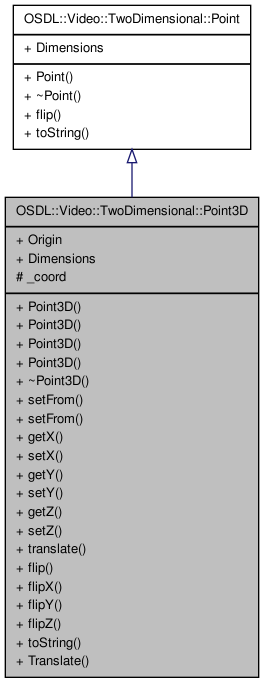

Inheritance diagram for OSDL::Video::TwoDimensional::Point3D:

[legend]

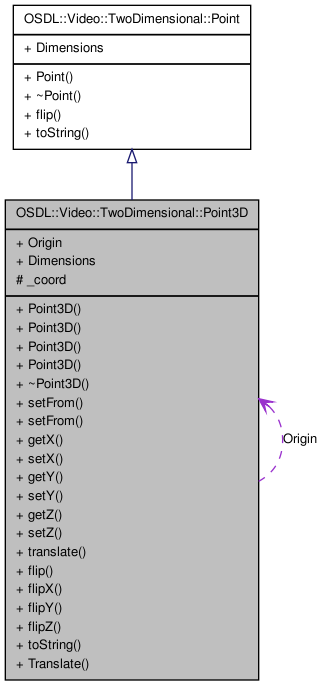

Collaboration diagram for OSDL::Video::TwoDimensional::Point3D:

[legend]

List of all members.

Detailed Description

Represents a point whose coordinates are integers, in a three-dimensional space.

This kind of points belongs to the 2D namespace, even if they are 3D, since stacking or homogeneous matrices are useful in a 2D context.

These integer points are especially useful to handle graphical user interface elements that can be stacked, such as widgets.

Definition at line 42 of file OSDLPoint3D.h.


Public Member Functions
	Point3D (Coordinate x, Coordinate y, Coordinate z) throw ()
	Constructor of a three dimensional point, from three coordinates.
	Point3D (const Point3D &source) throw ()
	Copy constructor.
	Point3D (const Ceylan::Maths::Linear::Vector3 &source) throw ()
	Creates a two dimensional point from a 2D vector (conversion operator).
	Point3D (FloatingPointCoordinate x, FloatingPointCoordinate y, FloatingPointCoordinate z) throw ()
	Constructor of a three dimensional point from three floating-point coordinates.
virtual	~Point3D () throw ()
	Virtual destructor of a three dimensional point.
virtual void	setFrom (const Point3D &source) throw ()
	Sets this point coordinates from specified point, whose coordinates are copied.
virtual void	setFrom (const Ceylan::Maths::Linear::Vector3 &source) throw ()
	Sets this point coordinates from specified 3D vector, whose coordinates are copied.
Coordinate	getX () const throw ()
	Returns the first coordinate (abscissa) of the point.
void	setX (Coordinate newX) throw ()
	Sets the first coordinate (abscissa) of the point.
Coordinate	getY () const throw ()
	Returns the second coordinate (ordinate) of the point.
void	setY (Coordinate newY) throw ()
	Sets the second coordinate (ordinate) of the point.
Coordinate	getZ () const throw ()
	Returns the third coordinate (depth) of the point.
void	setZ (Coordinate newY) throw ()
	Sets the third coordinate (depth) of the point.
void	translate (Offset x, Offset y, Offset z) throw ()
	Translates this point of vector [x,y,z] : adds x to this point's abscissa, adds y to its ordinate, and z to the depth coordinate.
virtual void	flip () throw ()
	Flips the coordinates of the point.
void	flipX () throw ()
	Flips the abscissa of this point.
void	flipY () throw ()
	Flips the ordinate of this point.
void	flipZ () throw ()
	Flips the depth coordinate of this point.
virtual const std::string	toString (Ceylan::VerbosityLevels level=Ceylan::high) const throw ()
	Returns an user-friendly description of the state of this object.
Static Public Member Functions
static void	Translate (std::list< Point3D * > &pointList, Offset x, Offset y, Offset z) throw ()
	Translates all the points in the list of vector [x,y,z] : adds x to each point's abscissa, adds y to their ordinates, and z to their depth coordinates.
Static Public Attributes
static const Point3D	Origin
	The origin of a 3D referential.
static const Ceylan::Maths::Linear::MatrixIndex	Dimensions = 3
	Tells what is the dimension of the space this point is defined in.
Protected Attributes
Coordinate	_coord [Dimensions]
	Coordinates of the 3D point in space (abscissa, ordinate, depth coordinate).

Constructor & Destructor Documentation

Point3D::Point3D	(	Coordinate	x,
		Coordinate	y,
		Coordinate	z
	)			throw ()

Constructor of a three dimensional point, from three coordinates.

Definition at line 17 of file OSDLPoint3D.cc.

Point3D::Point3D ( const Point3D & source ) throw ()

Copy constructor.

Note:: Cannot use the 'explicit' qualifier since it would prohibit expressions such as : 'return Point3D( _coord[0], _coord[1], _coord[2] ) ;'

Definition at line 27 of file OSDLPoint3D.cc.

Point3D::Point3D ( const Ceylan::Maths::Linear::Vector3 & source ) throw () [explicit]

Creates a two dimensional point from a 2D vector (conversion operator).

Note:: Floating-point coordinates are rounded to nearest integers.

Definition at line 38 of file OSDLPoint3D.cc.

Point3D::Point3D	(	FloatingPointCoordinate	x,
		FloatingPointCoordinate	y,
		FloatingPointCoordinate	z
	)			throw ()

Constructor of a three dimensional point from three floating-point coordinates.

Note:: Floating-point coordinates are rounded to nearest integers.

Definition at line 48 of file OSDLPoint3D.cc.

Point3D::~Point3D ( ) throw () [virtual]

Virtual destructor of a three dimensional point.

Definition at line 59 of file OSDLPoint3D.cc.

Member Function Documentation

void Point3D::setFrom ( const Point3D & source ) throw () [virtual]

Sets this point coordinates from specified point, whose coordinates are copied.

Definition at line 65 of file OSDLPoint3D.cc.

References _coord.

void Point3D::setFrom ( const Ceylan::Maths::Linear::Vector3 & source ) throw () [virtual]

Sets this point coordinates from specified 3D vector, whose coordinates are copied.

Note:: Floating-point coordinates are rounded to nearest integers.

Definition at line 75 of file OSDLPoint3D.cc.

References _coord.

Coordinate OSDL::Video::TwoDimensional::Point3D::getX ( ) const throw () [inline]

Returns the first coordinate (abscissa) of the point.

Definition at line 231 of file OSDLPoint3D.h.

References _coord.

void OSDL::Video::TwoDimensional::Point3D::setX ( Coordinate newX ) throw () [inline]

Sets the first coordinate (abscissa) of the point.

Definition at line 239 of file OSDLPoint3D.h.

Coordinate OSDL::Video::TwoDimensional::Point3D::getY ( ) const throw () [inline]

Returns the second coordinate (ordinate) of the point.

Definition at line 248 of file OSDLPoint3D.h.

References _coord.

void OSDL::Video::TwoDimensional::Point3D::setY ( Coordinate newY ) throw () [inline]

Sets the second coordinate (ordinate) of the point.

Definition at line 256 of file OSDLPoint3D.h.

Coordinate OSDL::Video::TwoDimensional::Point3D::getZ ( ) const throw () [inline]

Returns the third coordinate (depth) of the point.

Definition at line 263 of file OSDLPoint3D.h.

References _coord.

void OSDL::Video::TwoDimensional::Point3D::setZ ( Coordinate newY ) throw () [inline]

Sets the third coordinate (depth) of the point.

Definition at line 271 of file OSDLPoint3D.h.

void Point3D::translate	(	Offset	x,
		Offset	y,
		Offset	z
	)			throw ()

Translates this point of vector [x,y,z] : adds x to this point's abscissa, adds y to its ordinate, and z to the depth coordinate.

Definition at line 99 of file OSDLPoint3D.cc.

References _coord.

void Point3D::flip ( ) throw () [virtual]

Flips the coordinates of the point.

Implements OSDL::Video::TwoDimensional::Point.

Definition at line 109 of file OSDLPoint3D.cc.

References _coord.

void Point3D::flipX ( ) throw ()

Flips the abscissa of this point.

Definition at line 119 of file OSDLPoint3D.cc.

References _coord.

void Point3D::flipY ( ) throw ()

Flips the ordinate of this point.

Definition at line 127 of file OSDLPoint3D.cc.

References _coord.

void Point3D::flipZ ( ) throw ()

Flips the depth coordinate of this point.

Definition at line 135 of file OSDLPoint3D.cc.

References _coord.

const string Point3D::toString ( Ceylan::VerbosityLevels level = Ceylan::high ) const throw () [virtual]

Returns an user-friendly description of the state of this object.

Parameters:

level

the requested verbosity level.

Note:: Text output format is determined from overall settings.

See also:: Ceylan::TextDisplayable

Reimplemented from OSDL::Video::TwoDimensional::Point.

Definition at line 85 of file OSDLPoint3D.cc.

References _coord.

static void OSDL::Video::TwoDimensional::Point3D::Translate	(	std::list< Point3D * > &	pointList,
		Offset	x,
		Offset	y,
		Offset	z
	)			throw () `[static]`

Translates all the points in the list of vector [x,y,z] : adds x to each point's abscissa, adds y to their ordinates, and z to their depth coordinates.
