OSDL::Video::TwoDimensional::Polygon Class Reference

Polygons are defined as line segments passing through a suite of 2D points and enclosing a surface, since the last vector points towards the first. More...

#include <OSDLPolygon.h>

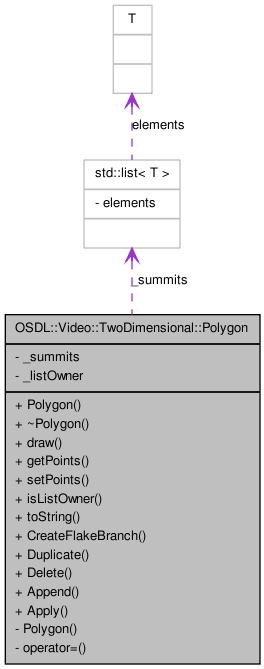

Collaboration diagram for OSDL::Video::TwoDimensional::Polygon:

[legend]

List of all members.

Public Member Functions
	Polygon (listPoint2D &summits, bool listOwner=false)
	Creates a polygon from a suite of summit vertices.
virtual	~Polygon () throw ()
	Basic virtual destructor.
virtual bool	draw (Surface &targetSurface, Pixels::ColorDefinition colorDef=Pixels::White, bool filled=true) const
	Draws the polygon on specified surface, with specified color.
virtual listPoint2D &	getPoints () const
	Returns the points that this polygon gathered.
virtual void	setPoints (listPoint2D &newList)
	Sets the vertex list for this polygon.
virtual bool	isListOwner () const
	Tells whether the polygon owns its points.
virtual const std::string	toString (Ceylan::VerbosityLevels level=Ceylan::high) const
	Returns an user-friendly description of the state of this object.
Static Public Member Functions
static Polygon &	CreateFlakeBranch (Length length=200, Length thickness=20, Ceylan::Maths::AngleInDegrees childAngle=50, Ceylan::Maths::Ratio branchingHeightRatio=0.7, Ceylan::Maths::Ratio scale=0.3)
	Creates a polygon whose shape is a snow flake, and which has no local referential registered.
static listPoint2D &	Duplicate (const listPoint2D &source)
	Duplicates specified list of points: returns another list containing clones of each points in source.
static void	Delete (listPoint2D &listToBeDeleted)
	Deletes specified list of points, including the points themselves.
static listPoint2D &	Append (listPoint2D &toBeAugmented, const listPoint2D &toAppend)
	Appends a shallow (not deep) copy of the toAppend list to the toBeAugmented list.
static listPoint2D &	Apply (const Ceylan::Maths::Linear::HomogeneousMatrix3 &transformation, listPoint2D &sourceList)
	Applies transformation, specified as a 3x3 homogeneous matrix, to each point of sourceList.
Private Member Functions
	Polygon (const Polygon &source)
	Copy constructor made private to ensure that it will be never called.
Polygon &	operator= (const Polygon &source)
	Assignment operator made private to ensure that it will be never called.
Private Attributes
listPoint2D *	_summits
	List of the summits of the polygon.
bool	_listOwner
	Tells whether the polygon owns the lists and the points that are stored in it.

Detailed Description

Polygons are defined as line segments passing through a suite of 2D points and enclosing a surface, since the last vector points towards the first.

All these vectors are to be defined in the Polygon's own 2D referential.

Note:: Polygons use pointers to Point2D so that these points can be shared by several polygons, for example in the case of a vertex being common to three edges, hence multiple polygons. Therefore points, unless specified otherwise (see pointOwner) are not owned by a polygon referencing them, and only their particular list specified for a polygon is deallocated when the polygon is itself deallocated. The points themselves are left as they are.

Definition at line 385 of file OSDLPolygon.h.

Constructor & Destructor Documentation

Polygon::Polygon	(	listPoint2D &	summits,
		bool	listOwner = `false`
	)			`[explicit]`

Creates a polygon from a suite of summit vertices.

Parameters:

	summits	the input list of summits for this polygon.
	listOwner	tells whether this polygon owns the specified point list and the points in it (and therefore will deallocate them) or not (in this case, neither the list object nor the points will be deallocated).

Note:: Never put twice the same point object in the list if the polygon is going to own its points, since the duplicated points would be deleted twice, which results usually in a segmentation fault.

Definition at line 493 of file OSDLPolygon.cc.

Polygon::~Polygon ( ) throw () [virtual]

Basic virtual destructor.

Definition at line 503 of file OSDLPolygon.cc.

References _listOwner, and _summits.

OSDL::Video::TwoDimensional::Polygon::Polygon ( const Polygon & source ) [explicit, private]

Copy constructor made private to ensure that it will be never called.

The compiler should complain whenever this undefined constructor is called, implicitly or not.

Member Function Documentation

listPoint2D & Polygon::Append	(	listPoint2D &	toBeAugmented,
		const listPoint2D &	toAppend
	)			`[static]`

Appends a shallow (not deep) copy of the toAppend list to the toBeAugmented list.

Note:: the toBeAugmented takes ownership of the points of toAppend, if toBeAugmented is a point owner list.

Returns:: toBeAugmented after it has been augmented by toAppend's points. It is the same list as specified in argument, but modified: no copy is made. Hence the returned value can be ignored, it is just convenient when chaining functions.

Definition at line 810 of file OSDLPolygon.cc.

static listPoint2D& OSDL::Video::TwoDimensional::Polygon::Apply	(	const Ceylan::Maths::Linear::HomogeneousMatrix3 &	transformation,
		listPoint2D &	sourceList
	)			`[static]`

Applies transformation, specified as a 3x3 homogeneous matrix, to each point of sourceList.

Parameters:

	transformation	the 2D geometrical transformation, specified as a 3x3 homogeneous matrix.
	sourceList	the list of points to transform. It will be updated thanks to the transformation.

Returns:: sourceList after all its points have been transformed. It is the same list as specified in argument, but modified: no copy is made. Hence the returned value can be ignored, it is just convenient when chaining functions.

Referenced by draw().

static Polygon& OSDL::Video::TwoDimensional::Polygon::CreateFlakeBranch	(	Length	length = `200`,
		Length	thickness = `20`,
		Ceylan::Maths::AngleInDegrees	childAngle = `50`,
		Ceylan::Maths::Ratio	branchingHeightRatio = `0.7`,
		Ceylan::Maths::Ratio	scale = `0.3`
	)			`[static]`

Creates a polygon whose shape is a snow flake, and which has no local referential registered.

Note:: The caller should deallocate this polygon when finished with it.

Parameters:

	length	defines the height of the main branch of this flake.
	thickness	defines the width of the main branch of this flake.
	childAngle	defines the angle, in degrees, between the main branch and the second branch.
	branchingHeightRatio	tells at which height of the main branch the second shall begin.
	scale	defines the ratio of the second branch relatively to the main one.

Returns:: A polygon which does not own its points, so that they can be freely used thanks to getPoints(). Hence the caller will have to deallocate them explicitly (deallocating the returned polygon will not be enough).
