OSDL::Events::JoystickHandler Class Reference

Handler for all detected joysticks. More...

#include <OSDLJoystickHandler.h>

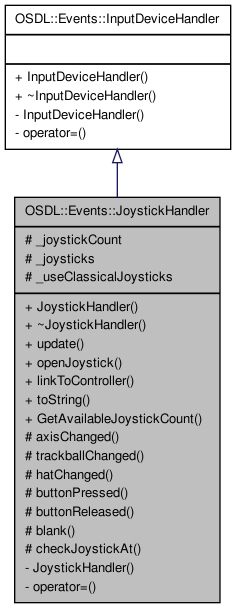

Inheritance diagram for OSDL::Events::JoystickHandler:

[legend]

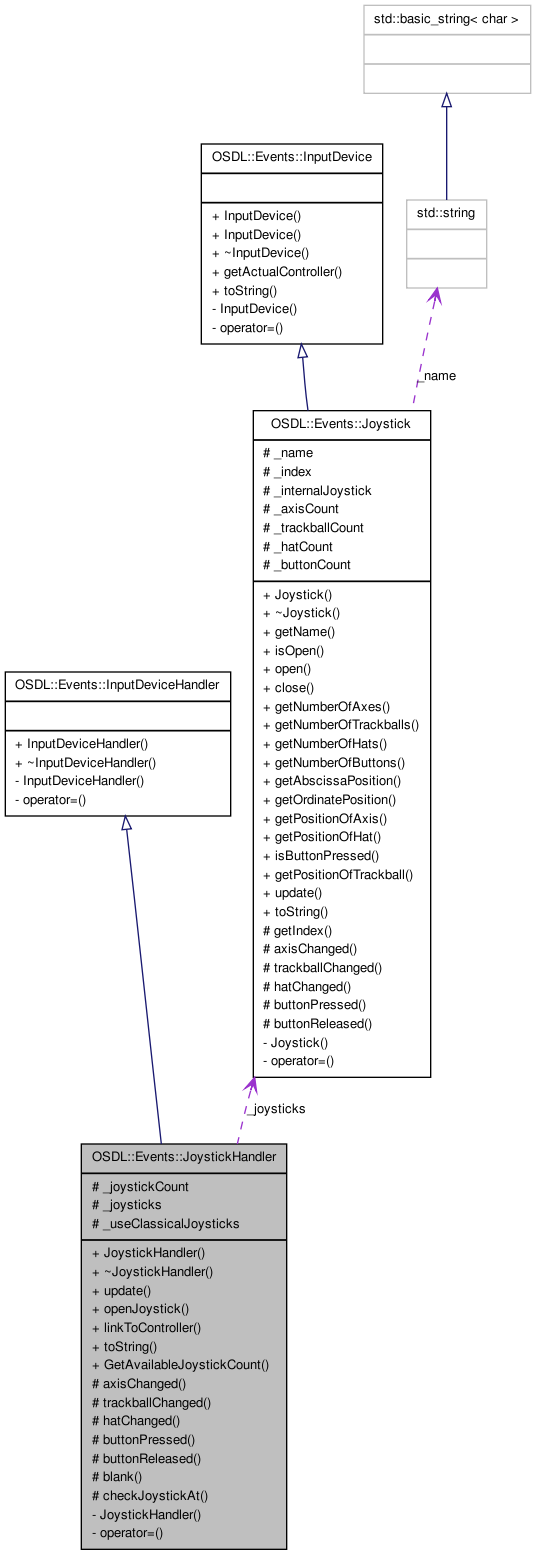

Collaboration diagram for OSDL::Events::JoystickHandler:

[legend]

List of all members.

Public Member Functions
	JoystickHandler (bool useClassicalJoysticks=true)
	Constructs a new joystick handler.
virtual	~JoystickHandler () throw ()
	Virtual destructor.
virtual void	update ()
	Auto-detects and registers any attached joystick.
virtual void	openJoystick (JoystickNumber index)
	Opens joystick of specified index.
virtual void	linkToController (JoystickNumber index, OSDL::MVC::Controller &controller)
	Links specified joystick to specified controller, so that any further joystick-related event will be sent to the controller.
virtual const std::string	toString (Ceylan::VerbosityLevels level=Ceylan::high) const
	Returns an user-friendly description of the state of this object.
Static Public Member Functions
static JoystickNumber	GetAvailableJoystickCount ()
	Returns the number of available joysticks, i.e.
Protected Member Functions
virtual void	axisChanged (const JoystickAxisEvent &joystickEvent) const
	Called whenever a joystick axis changed, so that its controller, if any, is notified.
virtual void	trackballChanged (const JoystickTrackballEvent &joystickEvent) const
	Called whenever a joystick trackball changed, so that its controller, if any, is notified.
virtual void	hatChanged (const JoystickHatEvent &joystickEvent) const
	Called whenever a joystick hat changed, so that its controller, if any, is notified.
virtual void	buttonPressed (const JoystickButtonEvent &joystickEvent) const
	Called whenever a joystick button was pressed, so that its controller, if any, is notified.
virtual void	buttonReleased (const JoystickButtonEvent &joystickEvent) const
	Called whenever a joystick button was released, so that its controller, if any, is notified.
virtual void	blank ()
	Blanks this joystick handler, i.e.
virtual void	checkJoystickAt (JoystickNumber index) const
	Checks that the joystick at the specified index exists and is opened.
Protected Attributes
JoystickNumber	_joystickCount
	Records how many joysticks are known by this handler.
Joystick **	_joysticks
	Records all known joysticks.
bool	_useClassicalJoysticks
	Tells whether complex joysticks (if false) or classical joysticks (if true) should be created.
Private Member Functions
	JoystickHandler (const JoystickHandler &source)
	Copy constructor made private to ensure that it will never be called.
JoystickHandler &	operator= (const JoystickHandler &source)
	Assignment operator made private to ensure that it will never be called.
Friends
class	OSDL::Events::EventsModule

Detailed Description

Handler for all detected joysticks.

Joystick indexes range from 0 (included) to GetAvailableJoystickCount() (excluded).

Note:: The UseJoystick flag must be specified in the call to CommonModule::getCommonModule so that joystick support is enabled.

Definition at line 82 of file OSDLJoystickHandler.h.

Constructor & Destructor Documentation

JoystickHandler::JoystickHandler ( bool useClassicalJoysticks = true ) [explicit]

Constructs a new joystick handler.

Parameters:

useClassicalJoysticks

tells whether detected joysticks should be managed as complex joysticks (powerful interface, but it requires the controller to take in charge this complexity) or classical joysticks (for usual needs, comes with preset behaviours which ease controller work).

Exceptions:

InputDeviceHandlerException

if the initialization of the joystick subsystem failed.

Definition at line 88 of file OSDLJoystickHandler.cc.

References OSDL::CommonModule::BackendSuccess, OSDL::Utils::getBackendLastError(), update(), and OSDL::CommonModule::UseVideo.

JoystickHandler::~JoystickHandler ( ) throw () [virtual]

Virtual destructor.

Definition at line 125 of file OSDLJoystickHandler.cc.

References blank(), and OSDL::CommonModule::UseJoystick.

OSDL::Events::JoystickHandler::JoystickHandler ( const JoystickHandler & source ) [explicit, private]

Copy constructor made private to ensure that it will never be called.

The compiler should complain whenever this undefined constructor is called, implicitly or not.

Member Function Documentation

void JoystickHandler::axisChanged ( const JoystickAxisEvent & joystickEvent ) const [protected, virtual]

Called whenever a joystick axis changed, so that its controller, if any, is notified.

Note:: Expected to be triggered by the EventsModule.

Definition at line 298 of file OSDLJoystickHandler.cc.

References _joysticks, OSDL::Events::Joystick::axisChanged(), and checkJoystickAt().

Referenced by OSDL::Events::EventsModule::onJoystickAxisChanged().

void JoystickHandler::blank ( ) [protected, virtual]

Blanks this joystick handler, i.e.

makes it forget all previously known joysticks.

Definition at line 387 of file OSDLJoystickHandler.cc.

References _joystickCount, and _joysticks.

Referenced by update(), and ~JoystickHandler().

void JoystickHandler::buttonPressed ( const JoystickButtonEvent & joystickEvent ) const [protected, virtual]

Called whenever a joystick button was pressed, so that its controller, if any, is notified.

Note:: Expected to be triggered by the EventsModule.

Definition at line 351 of file OSDLJoystickHandler.cc.

References _joysticks, OSDL::Events::Joystick::buttonPressed(), and checkJoystickAt().

Referenced by OSDL::Events::EventsModule::onJoystickButtonPressed().

void JoystickHandler::buttonReleased ( const JoystickButtonEvent & joystickEvent ) const [protected, virtual]

Called whenever a joystick button was released, so that its controller, if any, is notified.

Note:: Expected to be triggered by the EventsModule.

Definition at line 369 of file OSDLJoystickHandler.cc.

References _joysticks, OSDL::Events::Joystick::buttonReleased(), and checkJoystickAt().

Referenced by OSDL::Events::EventsModule::onJoystickButtonReleased().

void JoystickHandler::checkJoystickAt ( JoystickNumber index ) const [protected, virtual]

Checks that the joystick at the specified index exists and is opened.

Parameters:

index

the index of the joystick to check.

Note:: Stop in emergency the application if the check failed.

Definition at line 408 of file OSDLJoystickHandler.cc.

References _joystickCount, and _joysticks.

Referenced by axisChanged(), buttonPressed(), buttonReleased(), hatChanged(), and trackballChanged().

JoystickNumber JoystickHandler::GetAvailableJoystickCount ( ) [static]

Returns the number of available joysticks, i.e.

the joysticks currently attached to the system.

Definition at line 276 of file OSDLJoystickHandler.cc.

Referenced by linkToController(), openJoystick(), and update().

void JoystickHandler::hatChanged ( const JoystickHatEvent & joystickEvent ) const [protected, virtual]

Called whenever a joystick hat changed, so that its controller, if any, is notified.

Note:: Expected to be triggered by the EventsModule.

Definition at line 334 of file OSDLJoystickHandler.cc.

References _joysticks, checkJoystickAt(), and OSDL::Events::Joystick::hatChanged().

Referenced by OSDL::Events::EventsModule::onJoystickHatChanged().

void JoystickHandler::linkToController	(	JoystickNumber	index,
		OSDL::MVC::Controller &	controller
	)			`[virtual]`

Links specified joystick to specified controller, so that any further joystick-related event will be sent to the controller.

Removes automatically any link previously defined between this joystick and any other controller.

Parameters:

	index	the index of the joystick that shall be linked to the controller.
	controller	the OSDL controller which will be notified of joystick changes.

Exceptions:

JoystickException

if index is out of bounds.

Definition at line 212 of file OSDLJoystickHandler.cc.

References _joystickCount, _joysticks, GetAvailableJoystickCount(), and OSDL::Video::Pixels::toString().

void JoystickHandler::openJoystick ( JoystickNumber index ) [virtual]

Opens joystick of specified index.

If joystick is already opened, does nothing.

Parameters:

index

the index of the joystick to open.

Exceptions:

JoystickException

if index is out of bounds.

See also:: GetAvailableJoystickCount

Definition at line 179 of file OSDLJoystickHandler.cc.

References _joystickCount, _joysticks, GetAvailableJoystickCount(), OSDL::Events::Joystick::open(), and OSDL::Video::Pixels::toString().

JoystickHandler& OSDL::Events::JoystickHandler::operator= ( const JoystickHandler & source ) [private]

Assignment operator made private to ensure that it will never be called.

The compiler should complain whenever this undefined operator is called, implicitly or not.

const string JoystickHandler::toString ( Ceylan::VerbosityLevels level = Ceylan::high ) const [virtual]

Returns an user-friendly description of the state of this object.

Parameters:

level

the requested verbosity level.

Note:: Text output format is determined from overall settings.

See also:: Ceylan::TextDisplayable

Definition at line 245 of file OSDLJoystickHandler.cc.

References _joystickCount, _joysticks, and OSDL::Video::Pixels::toString().

Referenced by OSDL::Events::EventsModule::toString().

void JoystickHandler::trackballChanged ( const JoystickTrackballEvent & joystickEvent ) const [protected, virtual]

Called whenever a joystick trackball changed, so that its controller, if any, is notified.

Note:: Expected to be triggered by the EventsModule.

Definition at line 316 of file OSDLJoystickHandler.cc.

References _joysticks, checkJoystickAt(), and OSDL::Events::Joystick::trackballChanged().

Referenced by OSDL::Events::EventsModule::onJoystickTrackballChanged().

void JoystickHandler::update ( ) [virtual]

Auto-detects and registers any attached joystick.

Note:: Recreates from scratch all joystick informations.

Definition at line 145 of file OSDLJoystickHandler.cc.

References _joystickCount, _joysticks, _useClassicalJoysticks, blank(), GetAvailableJoystickCount(), and OSDL::Video::Pixels::toString().

Referenced by JoystickHandler().

Friends And Related Function Documentation

friend class OSDL::Events::EventsModule [friend]

Definition at line 91 of file OSDLJoystickHandler.h.

Member Data Documentation

JoystickNumber OSDL::Events::JoystickHandler::_joystickCount [protected]

Records how many joysticks are known by this handler.

Definition at line 302 of file OSDLJoystickHandler.h.

Referenced by blank(), checkJoystickAt(), linkToController(), openJoystick(), toString(), and update().

Joystick** OSDL::Events::JoystickHandler::_joysticks [protected]

Records all known joysticks.

A dynamic array is preferred to a list for performance reasons.

(read it as Joystick * _joysticks[])

Definition at line 315 of file OSDLJoystickHandler.h.

Referenced by axisChanged(), blank(), buttonPressed(), buttonReleased(), checkJoystickAt(), hatChanged(), linkToController(), openJoystick(), toString(), trackballChanged(), and update().

bool OSDL::Events::JoystickHandler::_useClassicalJoysticks [protected]

Tells whether complex joysticks (if false) or classical joysticks (if true) should be created.

Definition at line 324 of file OSDLJoystickHandler.h.

Referenced by update().
