OSDL::Events::ClassicalJoystick Class Reference

Models a classical joystick, with simplified access to the two main axes, commonly used to indicate the joystick current direction, with customizable deadzone support and two buttons directly managed. More...

#include <OSDLClassicalJoystick.h>

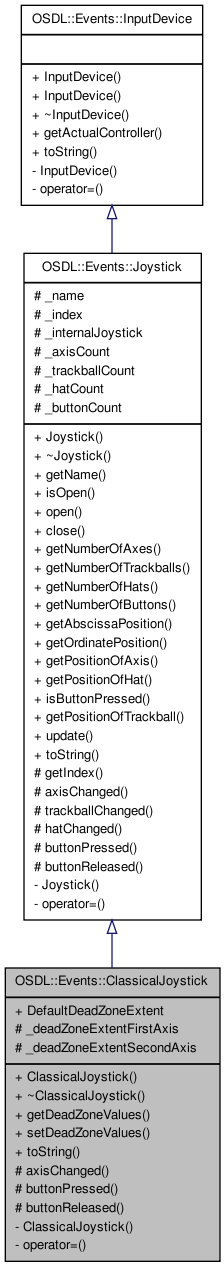

Inheritance diagram for OSDL::Events::ClassicalJoystick:

[legend]

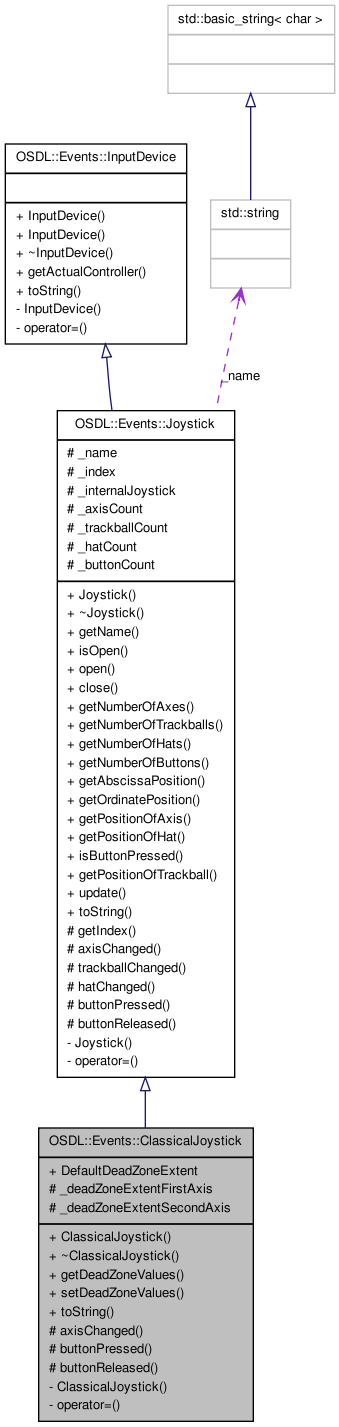

Collaboration diagram for OSDL::Events::ClassicalJoystick:

[legend]

List of all members.

Public Member Functions
	ClassicalJoystick (JoystickNumber index, AxisPosition deadZoneExtent=DefaultDeadZoneExtent)
	Constructs a new joystick handler.
virtual	~ClassicalJoystick () throw ()
	Virtual destructor, closing corresponding joystick device.
virtual void	getDeadZoneValues (AxisPosition &firstAxisExtent, AxisPosition &secondAxisExtent) const
	Returns the deadzone extent for the two first axes.
virtual void	setDeadZoneValues (AxisPosition firstAxisExtent=DefaultDeadZoneExtent, AxisPosition secondAxisExtent=DefaultDeadZoneExtent)
	Sets the deadzone values for the two first axes.
virtual const std::string	toString (Ceylan::VerbosityLevels level=Ceylan::high) const
	Returns an user-friendly description of the state of this object.
virtual const std::string &	getName () const
	Returns the implementation dependent name of this joystick.
virtual bool	isOpen () const
	Tells whether this joystick is currently opened.
virtual void	open ()
	Opens the joystick, so that it can be used.
virtual void	close ()
	Closes the joystick.
virtual JoystickAxesCount	getNumberOfAxes () const
	Returns the number of joystick axes.
virtual JoystickTrackballsCount	getNumberOfTrackballs () const
	Returns the number of joystick trackballs.
virtual JoystickHatsCount	getNumberOfHats () const
	Returns the number of joystick hats.
virtual JoystickButtonsCount	getNumberOfButtons () const
	Returns the number of joystick buttons.
virtual AxisPosition	getAbscissaPosition () const
	Returns the absolute position of the X axis.
virtual AxisPosition	getOrdinatePosition () const
	Returns the absolute position of the Y axis.
virtual AxisPosition	getPositionOfAxis (JoystickAxesCount index) const
	Returns the absolute position of the specified axis.
virtual HatPosition	getPositionOfHat (JoystickHatsCount index) const
	Returns the absolute position of the specified hat.
virtual bool	isButtonPressed (JoystickButtonsCount buttonNumber) const
	Tells whether specified joystick button is pressed.
virtual bool	getPositionOfTrackball (JoystickTrackballsCount ball, BallMotion &deltaX, BallMotion &deltaY) const
	Returns the relative position of the specified trackball.
virtual void	update ()
	Updates the description of this joystick (trackballs, hats, buttons, etc.
virtual OSDL::MVC::Controller &	getActualController () const
	Returns the actual (OSDL) controller this input device should be linked to.
Static Public Attributes
static const AxisPosition	DefaultDeadZoneExtent = 100
Protected Member Functions
virtual void	axisChanged (const JoystickAxisEvent &joystickEvent)
	Called whenever an axis of this joystick changed, and notify the linked controller, if any.
virtual void	buttonPressed (const JoystickButtonEvent &joystickEvent)
	Called whenever a button of this joystick was pressed, and notify the linked controller, if any.
virtual void	buttonReleased (const JoystickButtonEvent &joystickEvent)
	Called whenever a button of this joystick was released, and notify the linked controller, if any.
virtual JoystickNumber	getIndex () const
	Returns the index of this joystick in the platform list.
virtual void	trackballChanged (const JoystickTrackballEvent &joystickEvent)
	Called whenever a trackball of this joystick changed, and notifies the linked controller, if any.
virtual void	hatChanged (const JoystickHatEvent &joystickEvent)
	Called whenever a hat of this joystick changed, and notifies the linked controller, if any.
Protected Attributes
AxisPosition	_deadZoneExtentFirstAxis
	Stores the dead zone extent for first axis.
AxisPosition	_deadZoneExtentSecondAxis
	Stores the dead zone extent for first axis.
std::string	_name
	The implementation dependent name of this joystick, if any.
JoystickNumber	_index
	The number of this joystick in platform list.
LowLevelJoystick *	_internalJoystick
	The internal raw joystick being used.
JoystickAxesCount	_axisCount
	The number of axes for this joystick.
JoystickTrackballsCount	_trackballCount
	The number of trackballs for this joystick.
JoystickHatsCount	_hatCount
	The number of hats for this joystick.
JoystickButtonsCount	_buttonCount
	The number of buttons for this joystick.
Private Member Functions
	ClassicalJoystick (const Joystick &source)
	Copy constructor made private to ensure that it will never be called.
ClassicalJoystick &	operator= (const Joystick &source)
	Assignment operator made private to ensure that it will never be called.
Friends
class	OSDL::Events::JoystickHandler

Detailed Description

Models a classical joystick, with simplified access to the two main axes, commonly used to indicate the joystick current direction, with customizable deadzone support and two buttons directly managed.

This simplifies the task of the any controller being linked to this joystick.

Note:: Only the two first axes have a deadzone managed, since they usually correspond to the actual stick. Further axes are often dedicated to throttle, which do not need any deadzone at all for most applications.; Controllers should be linked to at most one Classical joystick, since the joystick index is not propagated.

Definition at line 68 of file OSDLClassicalJoystick.h.

Constructor & Destructor Documentation

ClassicalJoystick::ClassicalJoystick	(	JoystickNumber	index,
		AxisPosition	deadZoneExtent = `DefaultDeadZoneExtent`
	)			`[explicit]`

Constructs a new joystick handler.

Parameters:

	index	the index of this joystick in platform list.
	deadZoneExtent	the extent of the joystick dead zone.

Exceptions:

JoystickException

if the operation failed or is not supported.

Definition at line 87 of file OSDLClassicalJoystick.cc.

ClassicalJoystick::~ClassicalJoystick ( ) throw () [virtual]

Virtual destructor, closing corresponding joystick device.

Definition at line 105 of file OSDLClassicalJoystick.cc.

OSDL::Events::ClassicalJoystick::ClassicalJoystick ( const Joystick & source ) [explicit, private]

Copy constructor made private to ensure that it will never be called.

The compiler should complain whenever this undefined constructor is called, implicitly or not.

Member Function Documentation

void ClassicalJoystick::axisChanged ( const JoystickAxisEvent & joystickEvent ) [protected, virtual]

Called whenever an axis of this joystick changed, and notify the linked controller, if any.

Parameters:

joystickEvent

the corresponding joystick event.

Note:: Expected to be triggered by the Joystick handler.

Reimplemented from OSDL::Events::Joystick.

Definition at line 153 of file OSDLClassicalJoystick.cc.

References _deadZoneExtentFirstAxis, _deadZoneExtentSecondAxis, OSDL::Events::EventsModule::DescribeEvent(), OSDL::Events::InputDevice::getActualController(), OSDL::MVC::Controller::joystickDown(), OSDL::MVC::Controller::joystickLeft(), OSDL::MVC::Controller::joystickRight(), OSDL::MVC::Controller::joystickUp(), and OSDL_JOYSTICK_LOG.

void ClassicalJoystick::buttonPressed ( const JoystickButtonEvent & joystickEvent ) [protected, virtual]

Called whenever a button of this joystick was pressed, and notify the linked controller, if any.

Parameters:

joystickEvent

the corresponding joystick event.

Note:: Expected to be triggered by the Joystick handler.

Reimplemented from OSDL::Events::Joystick.

Definition at line 209 of file OSDLClassicalJoystick.cc.

References OSDL::Events::EventsModule::DescribeEvent(), OSDL::Events::InputDevice::getActualController(), OSDL::MVC::Controller::joystickFirstButtonPressed(), OSDL::MVC::Controller::joystickSecondButtonPressed(), and OSDL_JOYSTICK_LOG.

void ClassicalJoystick::buttonReleased ( const JoystickButtonEvent & joystickEvent ) [protected, virtual]

Called whenever a button of this joystick was released, and notify the linked controller, if any.

Parameters:

joystickEvent

the corresponding joystick event.

Note:: Expected to be triggered by the Joystick handler.

Reimplemented from OSDL::Events::Joystick.

Definition at line 254 of file OSDLClassicalJoystick.cc.

References OSDL::Events::EventsModule::DescribeEvent(), OSDL::Events::InputDevice::getActualController(), OSDL::MVC::Controller::joystickFirstButtonReleased(), OSDL::MVC::Controller::joystickSecondButtonReleased(), and OSDL_JOYSTICK_LOG.

void Joystick::close ( ) [virtual, inherited]

Closes the joystick.

Exceptions:

JoystickException

if the joystick was not open.

Definition at line 190 of file OSDLJoystick.cc.

References OSDL::Events::Joystick::_internalJoystick, and OSDL::Events::Joystick::isOpen().

Referenced by OSDL::Events::Joystick::~Joystick().

AxisPosition Joystick::getAbscissaPosition ( ) const [virtual, inherited]

Returns the absolute position of the X axis.

Note:: On most modern joysticks the X axis is represented by axis 0, which is the axis that is used by this method.; Joystick must be already open.

Definition at line 350 of file OSDLJoystick.cc.

References OSDL::Events::Joystick::_axisCount, OSDL::Events::Joystick::_internalJoystick, and OSDL::Events::Joystick::isOpen().

OSDL::MVC::Controller & InputDevice::getActualController ( ) const [virtual, inherited]

Returns the actual (OSDL) controller this input device should be linked to.

Exceptions:

EventException

if this input device is not linked to any controller, or if the controller is not an OSDL one.

See also:: isLinkedToController

Definition at line 63 of file OSDLInputDevice.cc.

Referenced by OSDL::Events::Joystick::axisChanged(), axisChanged(), OSDL::Events::Mouse::buttonPressed(), OSDL::Events::Joystick::buttonPressed(), buttonPressed(), OSDL::Events::Mouse::buttonReleased(), OSDL::Events::Joystick::buttonReleased(), buttonReleased(), OSDL::Events::Mouse::focusGained(), OSDL::Events::Mouse::focusLost(), OSDL::Events::Joystick::hatChanged(), OSDL::Events::Mouse::mouseMoved(), and OSDL::Events::Joystick::trackballChanged().

void ClassicalJoystick::getDeadZoneValues	(	AxisPosition &	firstAxisExtent,
		AxisPosition &	secondAxisExtent
	)			const `[virtual]`

Returns the deadzone extent for the two first axes.

Parameters:

	firstAxisExtent	will be set to the extent for the first axis.
	secondAxisExtent	will be set to the extent for the second axis.

Definition at line 112 of file OSDLClassicalJoystick.cc.

References _deadZoneExtentFirstAxis, and _deadZoneExtentSecondAxis.

JoystickNumber Joystick::getIndex ( ) const [protected, virtual, inherited]

Returns the index of this joystick in the platform list.

Note:: Should be useless.

Definition at line 509 of file OSDLJoystick.cc.

References OSDL::Events::Joystick::_index, OSDL::Events::Joystick::_internalJoystick, and OSDL::Video::Pixels::toString().

const string & Joystick::getName ( ) const [virtual, inherited]

Returns the implementation dependent name of this joystick.

Definition at line 134 of file OSDLJoystick.cc.

References OSDL::Events::Joystick::_name.

JoystickAxesCount Joystick::getNumberOfAxes ( ) const [virtual, inherited]

Returns the number of joystick axes.

Note:: The joystick must already have been opened.

Definition at line 290 of file OSDLJoystick.cc.

References OSDL::Events::Joystick::_axisCount, and OSDL::Events::Joystick::isOpen().

JoystickButtonsCount Joystick::getNumberOfButtons ( ) const [virtual, inherited]

Returns the number of joystick buttons.

Note:: The joystick must already have been opened.

Definition at line 335 of file OSDLJoystick.cc.

References OSDL::Events::Joystick::_buttonCount, and OSDL::Events::Joystick::isOpen().

JoystickHatsCount Joystick::getNumberOfHats ( ) const [virtual, inherited]

Returns the number of joystick hats.

Note:: The joystick must already have been opened.

Definition at line 320 of file OSDLJoystick.cc.

References OSDL::Events::Joystick::_hatCount, and OSDL::Events::Joystick::isOpen().

JoystickTrackballsCount Joystick::getNumberOfTrackballs ( ) const [virtual, inherited]

Returns the number of joystick trackballs.

Note:: The joystick must already have been opened.

Definition at line 305 of file OSDLJoystick.cc.

References OSDL::Events::Joystick::_trackballCount, and OSDL::Events::Joystick::isOpen().

AxisPosition Joystick::getOrdinatePosition ( ) const [virtual, inherited]

Returns the absolute position of the Y axis.

Note:: On most modern joysticks the Y axis is represented by axis 1, which is the axis that is used by this method.; Joystick must be already open.

Definition at line 378 of file OSDLJoystick.cc.

References OSDL::Events::Joystick::_axisCount, OSDL::Events::Joystick::_internalJoystick, and OSDL::Events::Joystick::isOpen().

AxisPosition Joystick::getPositionOfAxis ( JoystickAxesCount index ) const [virtual, inherited]

Returns the absolute position of the specified axis.

Parameters:

index

the index of the axis for this joystick.

Returns:: the axis position.

Exceptions:

JoystickException

if the joystick is not already opened or if index is out of bounds.

Definition at line 406 of file OSDLJoystick.cc.

References OSDL::Events::Joystick::_axisCount, OSDL::Events::Joystick::_internalJoystick, OSDL::Events::Joystick::isOpen(), and OSDL::Video::Pixels::toString().

HatPosition Joystick::getPositionOfHat ( JoystickHatsCount index ) const [virtual, inherited]

Returns the absolute position of the specified hat.

Parameters:

index

the index of the hat for this joystick.

Returns:: the hat position.

Exceptions:

JoystickException

if the joystick is not already open or if index is out of bounds.

Definition at line 431 of file OSDLJoystick.cc.

References OSDL::Events::Joystick::_hatCount, OSDL::Events::Joystick::_internalJoystick, OSDL::Events::Joystick::isOpen(), and OSDL::Video::Pixels::toString().

bool Joystick::getPositionOfTrackball	(	JoystickTrackballsCount	ball,
		BallMotion &	deltaX,
		BallMotion &	deltaY
	)			const `[virtual, inherited]`

Returns the relative position of the specified trackball.

Parameters:

	ball	the number of the ball for this joystick.
	deltaX	the abscissa motion delta, since last call to this method, will be stored here.
	deltaY	the ordinate motion delta, since last call to this method, will be stored here.

Returns:: true iff the operation succeeded.

Exceptions:

JoystickException

if the joystick is not already open or if index is out of bounds.

Note:: Trackballs can only return relative motion since the last call of this method.

Definition at line 481 of file OSDLJoystick.cc.

References OSDL::Events::Joystick::_internalJoystick, OSDL::Events::Joystick::_trackballCount, OSDL::Events::Joystick::isOpen(), and OSDL::Video::Pixels::toString().

void Joystick::hatChanged ( const JoystickHatEvent & joystickEvent ) [protected, virtual, inherited]

Called whenever a hat of this joystick changed, and notifies the linked controller, if any.

Parameters:

joystickEvent

the corresponding joystick event.

Note:: Expected to be triggered by the Joystick handler.

Definition at line 242 of file OSDLJoystick.cc.

References OSDL::Events::EventsModule::DescribeEvent(), OSDL::Events::InputDevice::getActualController(), OSDL::MVC::Controller::joystickHatChanged(), and OSDL_JOYSTICK_LOG.

Referenced by OSDL::Events::JoystickHandler::hatChanged().

bool Joystick::isButtonPressed ( JoystickButtonsCount buttonNumber ) const [virtual, inherited]

Tells whether specified joystick button is pressed.

Parameters:

buttonNumber

the number of the button for this joystick.

Returns:: true iff the button is currently pressed.

Exceptions:

JoystickException

if the joystick is not already open or if the button number is out of bounds.

Definition at line 456 of file OSDLJoystick.cc.

References OSDL::Events::Joystick::_buttonCount, OSDL::Events::Joystick::_internalJoystick, OSDL::Events::Joystick::isOpen(), and OSDL::Video::Pixels::toString().

bool Joystick::isOpen ( ) const [virtual, inherited]

Tells whether this joystick is currently opened.

Note:: A joystick must be opened before being used.

Definition at line 143 of file OSDLJoystick.cc.

References OSDL::Events::Joystick::_index, OSDL::Events::Joystick::_internalJoystick, OSDL::Events::Joystick::toString(), and OSDL::Video::Pixels::toString().

void Joystick::open ( ) [virtual, inherited]

Opens the joystick, so that it can be used.

Exceptions:

JoystickException

if the joystick was already open.

Definition at line 171 of file OSDLJoystick.cc.

References OSDL::Events::Joystick::_index, OSDL::Events::Joystick::_internalJoystick, OSDL::Events::Joystick::isOpen(), and OSDL::Events::Joystick::update().

Referenced by OSDL::Events::JoystickHandler::openJoystick().

ClassicalJoystick& OSDL::Events::ClassicalJoystick::operator= ( const Joystick & source ) [private]

Assignment operator made private to ensure that it will never be called.

The compiler should complain whenever this undefined operator is called, implicitly or not.

Reimplemented from OSDL::Events::Joystick.

void ClassicalJoystick::setDeadZoneValues	(	AxisPosition	firstAxisExtent = `DefaultDeadZoneExtent`,
		AxisPosition	secondAxisExtent = `DefaultDeadZoneExtent`
	)			`[virtual]`
