OSDL::Events::KeyboardHandler Class Reference

Handler for keyboard. More...

#include <OSDLKeyboardHandler.h>

Inheritance diagram for OSDL::Events::KeyboardHandler:
Inheritance graph
[legend]

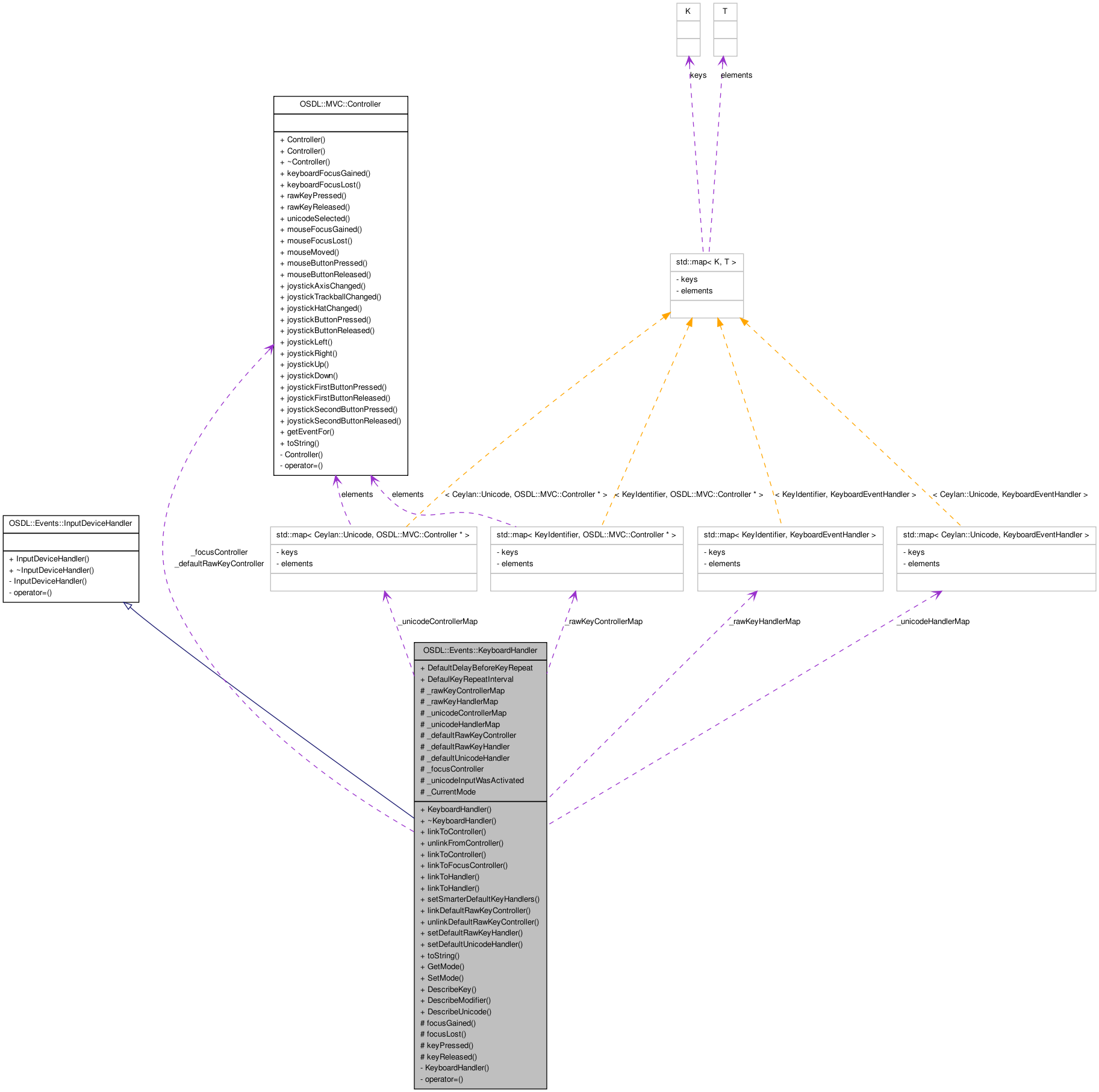

Collaboration diagram for OSDL::Events::KeyboardHandler:
Collaboration graph
[legend]

List of all members.

Public Types

enum  KeyIdentifier {
  BackspaceKey = SDLK_BACKSPACE, TabKey = SDLK_TAB, ClearKey = SDLK_CLEAR, EnterKey = SDLK_RETURN,
  ReturnKey = SDLK_RETURN, PauseKey = SDLK_PAUSE, EscapeKey = SDLK_ESCAPE, SpaceKey = SDLK_SPACE,
  ExclaimKey = SDLK_EXCLAIM, QuotedBLKey = SDLK_QUOTEDBL, HashKey = SDLK_HASH, DollarKey = SDLK_DOLLAR,
  AmpersandKey = SDLK_AMPERSAND, QuoteKey = SDLK_QUOTE, LeftParenthesisKey = SDLK_LEFTPAREN, RightParenthesisKey = SDLK_RIGHTPAREN,
  AsteriskKey = SDLK_ASTERISK, PlusKey = SDLK_PLUS, CommaKey = SDLK_COMMA, MinusKey = SDLK_MINUS,
  PeriodKey = SDLK_PERIOD, SlashKey = SDLK_SLASH, ZeroKey = SDLK_0, OneKey = SDLK_1,
  TwoKey = SDLK_2, ThreeKey = SDLK_3, FourKey = SDLK_4, FiveKey = SDLK_5,
  SixKey = SDLK_6, SevenKey = SDLK_7, HeightKey = SDLK_8, NineKey = SDLK_9,
  ColonKey = SDLK_COLON, SemiColonKey = SDLK_SEMICOLON, LessKey = SDLK_LESS, EqualsKey = SDLK_EQUALS,
  GreaterKey = SDLK_GREATER, QuestionKey = SDLK_QUESTION, AtKey = SDLK_AT, LeftBracketKey = SDLK_LEFTBRACKET,
  RightBracket = SDLK_RIGHTBRACKET, BackslashKey = SDLK_BACKSLASH, Caret = SDLK_CARET, Underscore = SDLK_UNDERSCORE,
  BackQuote = SDLK_BACKQUOTE, aKey = SDLK_a, bKey = SDLK_b, cKey = SDLK_c,
  dKey = SDLK_d, eKey = SDLK_e, fKey = SDLK_f, gKey = SDLK_g,
  hKey = SDLK_h, iKey = SDLK_i, jKey = SDLK_j, kKey = SDLK_k,
  lKey = SDLK_l, mKey = SDLK_m, nKey = SDLK_n, oKey = SDLK_o,
  pKey = SDLK_p, qKey = SDLK_q, rKey = SDLK_r, sKey = SDLK_s,
  tKey = SDLK_t, uKey = SDLK_u, vKey = SDLK_v, wKey = SDLK_w,
  xKey = SDLK_x, yKey = SDLK_y, zKey = SDLK_z, DeleteKey = SDLK_DELETE,
  International0Key = SDLK_WORLD_0, International1Key = SDLK_WORLD_1, International2Key = SDLK_WORLD_2, International3Key = SDLK_WORLD_3,
  International4Key = SDLK_WORLD_4, International5Key = SDLK_WORLD_5, International6Key = SDLK_WORLD_6, International7Key = SDLK_WORLD_7,
  International8Key = SDLK_WORLD_8, International9Key = SDLK_WORLD_9, International10Key = SDLK_WORLD_10, International11Key = SDLK_WORLD_11,
  International12Key = SDLK_WORLD_12, International13Key = SDLK_WORLD_13, International14Key = SDLK_WORLD_14, International15Key = SDLK_WORLD_15,
  International16Key = SDLK_WORLD_16, International17Key = SDLK_WORLD_17, International18Key = SDLK_WORLD_18, International19Key = SDLK_WORLD_19,
  International20Key = SDLK_WORLD_20, International21Key = SDLK_WORLD_21, International22Key = SDLK_WORLD_22, International23Key = SDLK_WORLD_23,
  International24Key = SDLK_WORLD_24, International25Key = SDLK_WORLD_25, International26Key = SDLK_WORLD_26, International27Key = SDLK_WORLD_27,
  International28Key = SDLK_WORLD_28, International29Key = SDLK_WORLD_29, International30Key = SDLK_WORLD_30, International31Key = SDLK_WORLD_31,
  International32Key = SDLK_WORLD_32, International33Key = SDLK_WORLD_33, International34Key = SDLK_WORLD_34, International35Key = SDLK_WORLD_35,
  International36Key = SDLK_WORLD_36, International37Key = SDLK_WORLD_37, International38Key = SDLK_WORLD_38, International39Key = SDLK_WORLD_39,
  International40Key = SDLK_WORLD_40, International41Key = SDLK_WORLD_41, International42Key = SDLK_WORLD_42, International43Key = SDLK_WORLD_43,
  International44Key = SDLK_WORLD_44, International45Key = SDLK_WORLD_45, International46Key = SDLK_WORLD_46, International47Key = SDLK_WORLD_47,
  International48Key = SDLK_WORLD_48, International49Key = SDLK_WORLD_49, International50Key = SDLK_WORLD_50, International51Key = SDLK_WORLD_51,
  International52Key = SDLK_WORLD_52, International53Key = SDLK_WORLD_53, International54Key = SDLK_WORLD_54, International55Key = SDLK_WORLD_55,
  International56Key = SDLK_WORLD_56, International57Key = SDLK_WORLD_57, International58Key = SDLK_WORLD_58, International59Key = SDLK_WORLD_59,
  International60Key = SDLK_WORLD_60, International61Key = SDLK_WORLD_61, International62Key = SDLK_WORLD_62, International63Key = SDLK_WORLD_63,
  International64Key = SDLK_WORLD_64, International65Key = SDLK_WORLD_65, International66Key = SDLK_WORLD_66, International67Key = SDLK_WORLD_67,
  International68Key = SDLK_WORLD_68, International69Key = SDLK_WORLD_69, International70Key = SDLK_WORLD_70, International71Key = SDLK_WORLD_71,
  International72Key = SDLK_WORLD_72, International73Key = SDLK_WORLD_73, International74Key = SDLK_WORLD_74, International75Key = SDLK_WORLD_75,
  International76Key = SDLK_WORLD_76, International77Key = SDLK_WORLD_77, International78Key = SDLK_WORLD_78, International79Key = SDLK_WORLD_79,
  International80Key = SDLK_WORLD_80, International81Key = SDLK_WORLD_81, International82Key = SDLK_WORLD_82, International83Key = SDLK_WORLD_83,
  International84Key = SDLK_WORLD_84, International85Key = SDLK_WORLD_85, International86Key = SDLK_WORLD_86, International87Key = SDLK_WORLD_87,
  International88Key = SDLK_WORLD_88, International89Key = SDLK_WORLD_89, International90Key = SDLK_WORLD_90, International91Key = SDLK_WORLD_91,
  International92Key = SDLK_WORLD_92, International93Key = SDLK_WORLD_93, International94Key = SDLK_WORLD_94, International95Key = SDLK_WORLD_95,
  ZeroKeypadKey = SDLK_KP0, OneKeypadKey = SDLK_KP1, TwoKeypadKey = SDLK_KP2, ThreeKeypadKey = SDLK_KP3,
  FourKeypadKey = SDLK_KP4, FiveKeypadKey = SDLK_KP5, SixKeypadKey = SDLK_KP6, SevenKeypadKey = SDLK_KP7,
  HeightKeypadKey = SDLK_KP8, NineKeypadKey = SDLK_KP9, PeriodKeypadKey = SDLK_KP_PERIOD, DivideKeypadKey = SDLK_KP_DIVIDE,
  MultiplyKeypadKey = SDLK_KP_MULTIPLY, MinusKeypadKey = SDLK_KP_MINUS, PlusKeypadKey = SDLK_KP_PLUS, EnterKeypadKey = SDLK_KP_ENTER,
  EqualsKeypadKey = SDLK_KP_EQUALS, UpArrowKey = SDLK_UP, DownArrowKey = SDLK_DOWN, LeftArrowKey = SDLK_LEFT,
  RightArrowKey = SDLK_RIGHT, InsertKey = SDLK_INSERT, HomeKey = SDLK_HOME, EndKey = SDLK_END,
  PageUpKey = SDLK_PAGEUP, PageDownKey = SDLK_PAGEDOWN, F1Key = SDLK_F1, F2Key = SDLK_F2,
  F3Key = SDLK_F3, F4Key = SDLK_F4, F5Key = SDLK_F5, F6Key = SDLK_F6,
  F7Key = SDLK_F7, F8Key = SDLK_F8, F9Key = SDLK_F9, F10Key = SDLK_F10,
  F11Key = SDLK_F11, F12Key = SDLK_F12, F13Key = SDLK_F13, F14Key = SDLK_F14,
  F15Key = SDLK_F15, NumLockKey = SDLK_NUMLOCK, CapsLockKey = SDLK_CAPSLOCK, ScrolLockKey = SDLK_SCROLLOCK,
  LeftShiftKey = SDLK_LSHIFT, RightShiftKey = SDLK_RSHIFT, LeftControlKey = SDLK_LCTRL, RightControlKey = SDLK_RCTRL,
  LeftAltKey = SDLK_LALT, RightAltKey = SDLK_RALT, LeftMetaKey = SDLK_LMETA, RightMetaKey = SDLK_RMETA,
  LeftSuperKey = SDLK_LSUPER, RightSuperKey = SDLK_RSUPER, ModeKey = SDLK_MODE, ComposeKey = SDLK_COMPOSE,
  HelpKey = SDLK_HELP, PrintKey = SDLK_PRINT, SysReqKey = SDLK_SYSREQ, BreakKey = SDLK_BREAK,
  MenuKey = SDLK_MENU, PowerKey = SDLK_POWER, EuroKey = SDLK_EURO, UndoKey = SDLK_UNDO
}


List of all currently available key identifiers: allows to identify a keyboard key being pressed or released.

More...
enum  KeyModifier {
  NoneModifier = KMOD_NONE, LeftShiftModifier = KMOD_LSHIFT, RightShiftModifier = KMOD_RSHIFT, LeftControlModifier = KMOD_LCTRL,
  RightControlModifier = KMOD_RCTRL, LeftAltModifier = KMOD_LALT, RightAltModifier = KMOD_RALT, LeftMetaModifier = KMOD_LMETA,
  RightMetaModifier = KMOD_RMETA, NumModifier = KMOD_NUM, CapsModifier = KMOD_CAPS, ModeModifier = KMOD_MODE,
  ReservedModifier = KMOD_RESERVED, ShiftModifier, ControlModifier, AltModifier,
  MetaModifier
}

Public Member Functions

 KeyboardHandler (KeyboardMode initialMode=rawInput, bool useSmarterDefaultKeyHandler=false)
 Constructs a new keyboard handler.
virtual ~KeyboardHandler () throw ()
 Virtual destructor.
virtual void linkToController (KeyIdentifier rawKey, OSDL::MVC::Controller &controller)
 Links the specified raw key to specified controller, so that any further key press or release of this raw key will be sent to the controller, if the keyboard is in raw input mode.
virtual void unlinkFromController (KeyIdentifier rawKey, OSDL::MVC::Controller &controller)
 Unlinks the specified controller from the specified raw key.
virtual void linkToController (Ceylan::Unicode unicode, OSDL::MVC::Controller &controller)
 Links the specified Unicode to specified controller, so that any further selection of this Unicode will be sent to the controller, if the keyboard is in text input mode.
virtual void linkToFocusController (OSDL::MVC::Controller &controller)
 Links this keyboard hander to specified focus-tracking controller, so that any further change to the keyboard focus will be notified to the controller.
virtual void linkToHandler (KeyIdentifier rawKey, KeyboardEventHandler handler)
 Links the specified raw key to specified keyboard event handler, so that if no controller is linked to this raw key, the keyboard event handler is triggered.
virtual void linkToHandler (Ceylan::Unicode unicode, KeyboardEventHandler handler)
 Links the specified Unicode to specified keyboard event handler, so that if no controller is linked to this Unicode, the keyboard event handler is triggered.
virtual void setSmarterDefaultKeyHandlers ()
 Sets the default key handlers to the smarter handlers.
virtual void linkDefaultRawKeyController (OSDL::MVC::Controller &newDefaultController)
 Links a new default controller for raw key events.
virtual bool unlinkDefaultRawKeyController ()
 Unlinks current default controller for raw key events.
virtual void setDefaultRawKeyHandler (KeyboardEventHandler newHandler)
 Sets a new default handler for raw key events.
virtual void setDefaultUnicodeHandler (KeyboardEventHandler newHandler)
 Sets a new default handler for Unicode events.
virtual const std::string toString (Ceylan::VerbosityLevels level=Ceylan::high) const
 Returns an user-friendly description of the state of this object.

Static Public Member Functions

static KeyboardMode GetMode ()
 Returns the current keyboard mode.
static void SetMode (KeyboardMode newMode)
 Sets the current keyboard mode.
static std::string DescribeKey (KeyIdentifier key)
 Describes specified key.
static std::string DescribeModifier (KeyModifier modifier)
 Describes specified key modifier.
static std::string DescribeUnicode (Ceylan::Unicode value)
 Describes specified Unicode value.

Static Public Attributes

static const
Ceylan::System::Millisecond 		DefaultDelayBeforeKeyRepeat = 500
 Specifies how long by default a key must be pressed before it begins repeating, in milliseconds.
static const
Ceylan::System::Millisecond 		DefaulKeyRepeatInterval = 30
 Specifies how many milliseconds by default should be waited until two repeated keys: once a key is hold long enough to repeat, this will be the time between two repeats of this key.

Protected Member Functions

virtual void focusGained (const FocusEvent &keyboardFocusEvent)
 Called whenever this keyboard gained focus, so that its controller, if any, is notified.
virtual void focusLost (const FocusEvent &keyboardFocusEvent)
 Called whenever this keyboard lost focus, so that its controller, if any, is notified.
virtual void keyPressed (const KeyboardEvent &keyboardEvent)
 Called whenever a key was pressed, so that its controller, if any, is notified.
virtual void keyReleased (const KeyboardEvent &keyboardEvent)
 Called whenever a key was released, so that its controller, if any, is notified.

Protected Attributes

std::map< KeyIdentifier,
OSDL::MVC::Controller * > 		_rawKeyControllerMap
 Allows to link a controller to a specific keyboard raw key, when in raw input mode.
std::map< KeyIdentifier,
KeyboardEventHandler > 		_rawKeyHandlerMap
 Fall-back map used whenever a raw key was pressed or released without being registered in the map making raw keys correspond to controllers: it may then be linked to a specific keyboard event handler.
std::map< Ceylan::Unicode,
OSDL::MVC::Controller * > 		_unicodeControllerMap
 Allows to link a controller to a specific Unicode, when in text input mode.
std::map< Ceylan::Unicode,
KeyboardEventHandler > 		_unicodeHandlerMap
 Fall-back map used whenever a Unicode was selected by the user without being registered in the map making Unicodes correspond to controllers: it may then be linked to a specific keyboard event handler.
OSDL::MVC::Controller * _defaultRawKeyController
 The default raw key controller, if any.
KeyboardEventHandler _defaultRawKeyHandler
 Default raw key event handler, does nothing, but can log keyboard events.
KeyboardEventHandler _defaultUnicodeHandler
 Default Unicode event handler, does nothing, but can log keyboard events.
OSDL::MVC::Controller * _focusController
 The controller that will receive focus changes.
bool _unicodeInputWasActivated
 Records the status of Unicode input before this handler was created, so that it can be restored.

Static Protected Attributes

static KeyboardMode _CurrentMode = rawInput
 Stores the current keyboard interacting scheme.

Private Member Functions

 KeyboardHandler (const KeyboardHandler &source)
 Copy constructor made private to ensure that it will never be called.
KeyboardHandler & operator= (const KeyboardHandler &source)
 Assignment operator made private to ensure that it will never be called.

Friends

class OSDL::Events::EventsModule

Detailed Description

Handler for keyboard.

Keyboard inputs are managed according to the current keyboard mode (example: raw input, text input with unicode support, etc.).

In raw mode, a key can be specifically managed by a controller, otherwise by an specific handler, otherwise by a default controller, otherwise by a default handler.

Definition at line 147 of file OSDLKeyboardHandler.h.

Member Enumeration Documentation

enum OSDL::Events::KeyboardHandler::KeyIdentifier

List of all currently available key identifiers: allows to identify a keyboard key being pressed or released.

First column lists the key identifiers which are to be used in user applications, second one maps them to the keys defined by the SDL back-end, and third describes the corresponding key.

The source of the complete list is the SDL back-end (SDL_keysym.h).

See also:
also generic/CeylanUtils.h for the Nintendo keys, they have been duplicated here for a simpler use of OSDL.
Enumerator:
BackspaceKey
TabKey
ClearKey
EnterKey
ReturnKey
PauseKey
EscapeKey
SpaceKey
ExclaimKey
QuotedBLKey
HashKey
DollarKey
AmpersandKey
QuoteKey
LeftParenthesisKey
RightParenthesisKey
AsteriskKey
PlusKey
CommaKey
MinusKey
PeriodKey
SlashKey
ZeroKey
OneKey
TwoKey
ThreeKey
FourKey
FiveKey
SixKey
SevenKey
HeightKey
NineKey
ColonKey
SemiColonKey
LessKey
EqualsKey
GreaterKey
QuestionKey
AtKey
LeftBracketKey
RightBracket
BackslashKey
Caret
Underscore
BackQuote
aKey
bKey
cKey
dKey
eKey
fKey
gKey
hKey
iKey
jKey
kKey
lKey
mKey
nKey
oKey
pKey
qKey
rKey
sKey
tKey
uKey
vKey
wKey
xKey
yKey
zKey
DeleteKey
International0Key
International1Key
International2Key
International3Key
International4Key
International5Key
International6Key
International7Key
International8Key
International9Key
International10Key
International11Key
International12Key
International13Key
International14Key
International15Key
International16Key
International17Key
International18Key
International19Key
International20Key
International21Key
International22Key
International23Key
International24Key
International25Key
International26Key
International27Key
International28Key
International29Key
International30Key
International31Key
International32Key
International33Key
International34Key
International35Key
International36Key
International37Key
International38Key
International39Key
International40Key
International41Key
International42Key
International43Key
International44Key
International45Key
International46Key
International47Key
International48Key
International49Key
International50Key
International51Key
International52Key
International53Key
International54Key
International55Key
International56Key
International57Key
International58Key
International59Key
International60Key
International61Key
International62Key
International63Key
International64Key
International65Key
International66Key
International67Key
International68Key
International69Key
International70Key
International71Key
International72Key
International73Key
International74Key
International75Key
International76Key
International77Key
International78Key
International79Key
International80Key
International81Key
International82Key
International83Key
International84Key
International85Key
International86Key
International87Key
International88Key
International89Key
International90Key
International91Key
International92Key
International93Key
International94Key
International95Key
ZeroKeypadKey
OneKeypadKey
TwoKeypadKey
ThreeKeypadKey
FourKeypadKey
FiveKeypadKey
SixKeypadKey
SevenKeypadKey
HeightKeypadKey
NineKeypadKey
PeriodKeypadKey
DivideKeypadKey
MultiplyKeypadKey
MinusKeypadKey
PlusKeypadKey
EnterKeypadKey
EqualsKeypadKey
UpArrowKey
DownArrowKey
LeftArrowKey
RightArrowKey
InsertKey
HomeKey
EndKey
PageUpKey
PageDownKey
F1Key
F2Key
F3Key
F4Key
F5Key
F6Key
F7Key
F8Key
F9Key
F10Key
F11Key
F12Key
F13Key
F14Key
F15Key
NumLockKey
CapsLockKey
ScrolLockKey
LeftShiftKey
RightShiftKey
LeftControlKey
RightControlKey
LeftAltKey
RightAltKey
LeftMetaKey
RightMetaKey
LeftSuperKey
RightSuperKey
ModeKey
ComposeKey
HelpKey
PrintKey
SysReqKey
BreakKey
MenuKey
PowerKey
EuroKey
UndoKey

Definition at line 180 of file OSDLKeyboardHandler.h.

enum OSDL::Events::KeyboardHandler::KeyModifier
Enumerator:
NoneModifier
LeftShiftModifier
RightShiftModifier
LeftControlModifier
RightControlModifier
LeftAltModifier
RightAltModifier
LeftMetaModifier
RightMetaModifier
NumModifier
CapsModifier
ModeModifier
ReservedModifier
ShiftModifier
ControlModifier
AltModifier
MetaModifier

Definition at line 543 of file OSDLKeyboardHandler.h.

Constructor & Destructor Documentation

KeyboardHandler::KeyboardHandler ( KeyboardMode  initialMode = rawInput,
bool  useSmarterDefaultKeyHandler = false
) [explicit]

Constructs a new keyboard handler.

Parameters:
initialMode the mode in which this keyboard will start.
useSmarterDefaultKeyHandler if true, a key handler that will exit the event loop if escape or 'q' is pressed, will be used. Otherwise, a do-nothing key handler will be used.
Note:
The keyboard mode is shared between all keyboard handlers.
Exceptions:
InputDeviceHandlerException if keyboard could not be initialized.

Definition at line 201 of file OSDLKeyboardHandler.cc.

References _defaultRawKeyHandler, _defaultUnicodeHandler, _unicodeInputWasActivated, doNothingKeyHandler(), SetMode(), and setSmarterDefaultKeyHandlers().

KeyboardHandler::~KeyboardHandler (  )  throw () [virtual]

Virtual destructor.

Definition at line 252 of file OSDLKeyboardHandler.cc.

References _defaultRawKeyController, and _unicodeInputWasActivated.

OSDL::Events::KeyboardHandler::KeyboardHandler ( const KeyboardHandler &  source  )  [explicit, private]

Copy constructor made private to ensure that it will never be called.

The compiler should complain whenever this undefined constructor is called, implicitly or not.

Member Function Documentation

string KeyboardHandler::DescribeKey ( KeyIdentifier  key  )  [static]

Describes specified key.

Parameters:
key the key to describe.

Definition at line 498 of file OSDLKeyboardHandler.cc.

References BackspaceKey, ClearKey, DeleteKey, EnterKey, EscapeKey, PauseKey, SpaceKey, TabKey, and toString().

Referenced by OSDL::Events::EventsModule::DescribeEvent().

string KeyboardHandler::DescribeModifier ( KeyModifier  modifier  )  [static]

Describes specified key modifier.

Parameters:
modifier the modifier to describe (alt, control, meta, etc.).

Definition at line 562 of file OSDLKeyboardHandler.cc.

References CapsModifier, LeftAltModifier, LeftControlModifier, LeftMetaModifier, LeftShiftModifier, ModeModifier, NumModifier, ReservedModifier, RightAltModifier, RightControlModifier, RightMetaModifier, and RightShiftModifier.

Referenced by OSDL::Events::EventsModule::DescribeEvent().

string KeyboardHandler::DescribeUnicode ( Ceylan::Unicode  value  )  [static]

Describes specified Unicode value.

Parameters:
value the Unicode value to describe.

Definition at line 620 of file OSDLKeyboardHandler.cc.

References toString().

Referenced by OSDL::Events::EventsModule::DescribeEvent().

void KeyboardHandler::focusGained ( const FocusEvent &  keyboardFocusEvent  )  [protected, virtual]

Called whenever this keyboard gained focus, so that its controller, if any, is notified.

Note:
Expected to be triggered by the EventsModule.

Definition at line 639 of file OSDLKeyboardHandler.cc.

References _focusController, and OSDL::MVC::Controller::keyboardFocusGained().

Referenced by OSDL::Events::EventsModule::onKeyboardFocusGained().

void KeyboardHandler::focusLost ( const FocusEvent &  keyboardFocusEvent  )  [protected, virtual]

Called whenever this keyboard lost focus, so that its controller, if any, is notified.

Note:
Expected to be triggered by the EventsModule.

Definition at line 649 of file OSDLKeyboardHandler.cc.

References _focusController, and OSDL::MVC::Controller::keyboardFocusLost().

Referenced by OSDL::Events::EventsModule::onKeyboardFocusLost().

KeyboardMode KeyboardHandler::GetMode (  )  [static]

Returns the current keyboard mode.

The keyboard at startup is in raw input mode.

Returns:
KeyboardMode the current keyboard mode.
Note:
This belongs to overall common settings, it has therefore to be static.

Definition at line 451 of file OSDLKeyboardHandler.cc.

References _CurrentMode.

Referenced by OSDL::Events::EventsModule::DescribeEvent(), and smarterKeyHandler().

void KeyboardHandler::keyPressed ( const KeyboardEvent &  keyboardEvent  )  [protected, virtual]

Called whenever a key was pressed, so that its controller, if any, is notified.

If no controller is registered for this key, then:

  • if a key handler is registered for this key, it will be called
  • otherwise (no handler for this key is found), then the default key handler will be called.
Note:
The actions taken depend on the current input mode.
Expected to be triggered by the EventsModule.

Definition at line 659 of file OSDLKeyboardHandler.cc.

References _CurrentMode, _defaultRawKeyController, _defaultRawKeyHandler, _defaultUnicodeHandler, _rawKeyControllerMap, _rawKeyHandlerMap, _unicodeControllerMap, _unicodeHandlerMap, OSDL_KEYBOARD_HANDLER_LOG, OSDL::Events::rawInput, OSDL::MVC::Controller::rawKeyPressed(), and OSDL::Events::textInput.

Referenced by OSDL::Events::EventsModule::onKeyPressed().

void KeyboardHandler::keyReleased ( const KeyboardEvent &  keyboardEvent  )  [protected, virtual]

Called whenever a key was released, so that its controller, if any, is notified.

If no controller is registered for this key, then:

  • if a key handler is registered for this key, it will be called.
  • otherwise (no handler for this key is found), then the default key handler will be called.
Note:
The actions taken depend on the current input mode.
Expected to be triggered by the EventsModule.

Definition at line 799 of file OSDLKeyboardHandler.cc.

References _CurrentMode, _defaultRawKeyHandler, _rawKeyControllerMap, _rawKeyHandlerMap, OSDL_KEYBOARD_HANDLER_LOG, and OSDL::Events::rawInput.

Referenced by OSDL::Events::EventsModule::onKeyReleased().

void KeyboardHandler::linkDefaultRawKeyController ( OSDL::MVC::Controller &  newDefaultController  )  [virtual]

Links a new default controller for raw key events.

Parameters:
newDefaultController the new default controller, whose ownership is not taken.

Any preexisting default controller will be forgotten (but not deleted) first.

Definition at line 373 of file OSDLKeyboardHandler.cc.

References _defaultRawKeyController.

void KeyboardHandler::linkToController ( Ceylan::Unicode  unicode,
OSDL::MVC::Controller &  controller
) [virtual]

Links the specified Unicode to specified controller, so that any further selection of this Unicode will be sent to the controller, if the keyboard is in text input mode.

Removes automatically any link previously defined between this Unicode and any other controller.

Parameters:
unicode the Unicode that shall be linked to the controller.
controller the OSDL controller which will be notified of this Unicode being selected.
Note:
Ownership of the controller is not taken.

Definition at line 322 of file OSDLKeyboardHandler.cc.

References _unicodeControllerMap.

void KeyboardHandler::linkToController ( KeyIdentifier  rawKey,
OSDL::MVC::Controller &  controller
) [virtual]

Links the specified raw key to specified controller, so that any further key press or release of this raw key will be sent to the controller, if the keyboard is in raw input mode.

Removes automatically any link previously defined between this raw key and any other controller.

Parameters:
rawKey the identifier of the raw key that shall be linked to the controller.
controller the OSDL controller which will be notified of this raw key presses and releases.
Note:
Ownership of the controller is not taken.

Definition at line 278 of file OSDLKeyboardHandler.cc.

References _rawKeyControllerMap.

void KeyboardHandler::linkToFocusController ( OSDL::MVC::Controller &  controller  )  [virtual]

Links this keyboard hander to specified focus-tracking controller, so that any further change to the keyboard focus will be notified to the controller.

Removes automatically any link previously defined between this Unicode and any other controller.

Parameters:
controller the OSDL controller which will be notified of the focus change.
Note:
Ownership of the controller is not taken.

Definition at line 332 of file OSDLKeyboardHandler.cc.

References _focusController.

void KeyboardHandler::linkToHandler ( Ceylan::Unicode  unicode,
KeyboardEventHandler  handler
) [virtual]

Links the specified Unicode to specified keyboard event handler, so that if no controller is linked to this Unicode, the keyboard event handler is triggered.

Parameters:
unicode the Unicode to link with the keyboard event handler.
handler the handler that will received the Unicode event, in the lack of linked controller.

Definition at line 352 of file OSDLKeyboardHandler.cc.

References _unicodeHandlerMap.

void KeyboardHandler::linkToHandler ( KeyIdentifier  rawKey,
KeyboardEventHandler  handler
) [virtual]

Links the specified raw key to specified keyboard event handler, so that if no controller is linked to this raw key, the keyboard event handler is triggered.

Parameters:
rawKey the raw key to link with the keyboard event handler.
handler the handler that will received the raw key event, in the lack of linked controller.

Definition at line 342 of file OSDLKeyboardHandler.cc.

References _rawKeyHandlerMap.

KeyboardHandler& OSDL::Events::KeyboardHandler::operator= ( const KeyboardHandler &  source  )  [private]

Assignment operator made private to ensure that it will never be called.

The compiler should complain whenever this undefined operator is called, implicitly or not.

void KeyboardHandler::setDefaultRawKeyHandler ( KeyboardEventHandler  newHandler  )  [virtual]

Sets a new default handler for raw key events.

Parameters:
newHandler the new handler

Definition at line 401 of file OSDLKeyboardHandler.cc.

References _defaultRawKeyHandler.

void KeyboardHandler::setDefaultUnicodeHandler ( KeyboardEventHandler  newHandler  )  [virtual]

Sets a new default handler for Unicode events.

Parameters:
newHandler the new handler

Definition at line 411 of file OSDLKeyboardHandler.cc.

References _defaultUnicodeHandler.

void KeyboardHandler::SetMode ( KeyboardMode  newMode  )  [static]

Sets the current keyboard mode.

Parameters:
newMode the new keyboard mode.
Note:
This belongs to overall common settings, it has therefore to be static.

Definition at line 460 of file OSDLKeyboardHandler.cc.

References _CurrentMode, DefaulKeyRepeatInterval, DefaultDelayBeforeKeyRepeat, OSDL_KEYBOARD_HANDLER_LOG, OSDL::Events::rawInput, OSDL::Events::textInput, and OSDL::Video::Pixels::toString().

Referenced by KeyboardHandler(), and smarterKeyHandler().

void KeyboardHandler::setSmarterDefaultKeyHandlers (  )  [virtual]

Sets the default key handlers to the smarter handlers.

These handlers allow to trigger an exit from the event loop if escape or 'q' key is pressed, both for raw and input modes.

The 'F1' key is used to toggle between raw input and text input keyboard modes.

Definition at line 362 of file OSDLKeyboardHandler.cc.

References _defaultRawKeyHandler, _defaultUnicodeHandler, and smarterKeyHandler().

Referenced by KeyboardHandler().

const string KeyboardHandler::toString ( Ceylan::VerbosityLevels  level = Ceylan::high  )  const [virtual]

Returns an user-friendly description of the state of this object.

Parameters:
level the requested verbosity level.
Note:
Text output format is determined from overall settings.
See also:
Ceylan::TextDisplayable

Definition at line 421 of file OSDLKeyboardHandler.cc.

References _CurrentMode, OSDL::Events::rawInput, and OSDL::Events::textInput.

Referenced by DescribeKey(), DescribeUnicode(), and OSDL::Events::EventsModule::toString().

bool KeyboardHandler::unlinkDefaultRawKeyController (  )  [virtual]

Unlinks current default controller for raw key events.

Returns:
true iff there was a controller to unlink.

Definition at line 383 of file OSDLKeyboardHandler.cc.

References _defaultRawKeyController.

void KeyboardHandler::unlinkFromController ( KeyIdentifier  rawKey,
OSDL::MVC::Controller &  controller
) [virtual]

Unlinks the specified controller from the specified raw key.

Parameters:
rawKey the identifier of the raw key that shall be unlinked from the controller.
controller the OSDL controller to unlink from that key.

Definition at line 288 of file OSDLKeyboardHandler.cc.

References _rawKeyControllerMap, and OSDL_KEYBOARD_HANDLER_LOG.

Friends And Related Function Documentation

friend class OSDL::Events::EventsModule [friend]

Definition at line 156 of file OSDLKeyboardHandler.h.

Member Data Documentation

KeyboardMode KeyboardHandler::_CurrentMode = rawInput [static, protected]

Stores the current keyboard interacting scheme.

Definition at line 973 of file OSDLKeyboardHandler.h.

Referenced by GetMode(), keyPressed(), keyReleased(), SetMode(), and toString().

OSDL::MVC::Controller* OSDL::Events::KeyboardHandler::_defaultRawKeyController [protected]

The default raw key controller, if any.

Definition at line 1078 of file OSDLKeyboardHandler.h.

Referenced by keyPressed(), linkDefaultRawKeyController(), unlinkDefaultRawKeyController(), and ~KeyboardHandler().

KeyboardEventHandler OSDL::Events::KeyboardHandler::_defaultRawKeyHandler [protected]

Default raw key event handler, does nothing, but can log keyboard events.

Note:
It is only used when in raw input mode.

Definition at line 1089 of file OSDLKeyboardHandler.h.

Referenced by KeyboardHandler(), keyPressed(), keyReleased(), setDefaultRawKeyHandler(), and setSmarterDefaultKeyHandlers().

KeyboardEventHandler OSDL::Events::KeyboardHandler::_defaultUnicodeHandler [protected]

Default Unicode event handler, does nothing, but can log keyboard events.

Note:
It is only used when in text input mode.

Definition at line 1100 of file OSDLKeyboardHandler.h.

Referenced by KeyboardHandler(), keyPressed(), setDefaultUnicodeHandler(), and setSmarterDefaultKeyHandlers().

OSDL::MVC::Controller* OSDL::Events::KeyboardHandler::_focusController [protected]

The controller that will receive focus changes.

No controller is owned by this handler.

Definition at line 1110 of file OSDLKeyboardHandler.h.

Referenced by focusGained(), focusLost(), and linkToFocusController().

std::map<KeyIdentifier, OSDL::MVC::Controller *> OSDL::Events::KeyboardHandler::_rawKeyControllerMap [protected]

Allows to link a controller to a specific keyboard raw key, when in raw input mode.

The controller can be then notified than one of its tracked keys has been pressed or released.

Note:
This is used only in raw input mode.

Definition at line 998 of file OSDLKeyboardHandler.h.

Referenced by keyPressed(), keyReleased(), linkToController(), and unlinkFromController().

std::map<KeyIdentifier, KeyboardEventHandler> OSDL::Events::KeyboardHandler::_rawKeyHandlerMap [protected]

Fall-back map used whenever a raw key was pressed or released without being registered in the map making raw keys correspond to controllers: it may then be linked to a specific keyboard event handler.

When a key has been pressed or released, but no controller was linked to it, this key is sent to this default key dictionnary which manages external settings not linked with MVC-based simulation world.

For example, an application could decide to quit when the so-defined 'q' key is pressed, which obviously should not rely on the controller MVC framework.

Note:
This is used only in raw input mode.

Definition at line 1021 of file OSDLKeyboardHandler.h.

Referenced by keyPressed(), keyReleased(), and linkToHandler().

std::map<Ceylan::Unicode, OSDL::MVC::Controller *> OSDL::Events::KeyboardHandler::_unicodeControllerMap [protected]

Allows to link a controller to a specific Unicode, when in text input mode.

The controller can be then notified than one of its tracked unicodes has been selected by the user.

Note:
This is used only in text input mode. Linked controllers will only be notified in this mode of key presses and repeats (not of key releases which are not relevant in this context).

Definition at line 1039 of file OSDLKeyboardHandler.h.

Referenced by keyPressed(), and linkToController().

std::map<Ceylan::Unicode, KeyboardEventHandler> OSDL::Events::KeyboardHandler::_unicodeHandlerMap [protected]

Fall-back map used whenever a Unicode was selected by the user without being registered in the map making Unicodes correspond to controllers: it may then be linked to a specific keyboard event handler.

When a Unicode is selected, but no controller was linked to it, this Unicode is sent to this default Unicode dictionnary which manages external settings not linked with the MVC-based simulation world.

For example, an application could decide to quit when the 'q' Unicode is selected, which obviously should not rely on the controller MVC framework.

Note:
This is used only in text input mode. Linked event handlers will only be notified in this mode of key presses and repeats (not of key releases which are not relevant in this context).

Definition at line 1065 of file OSDLKeyboardHandler.h.

Referenced by keyPressed(), and linkToHandler().

bool OSDL::Events::KeyboardHandler::_unicodeInputWasActivated [protected]

Records the status of Unicode input before this handler was created, so that it can be restored.

Definition at line 1119 of file OSDLKeyboardHandler.h.

Referenced by KeyboardHandler(), and ~KeyboardHandler().

const Ceylan::System::Millisecond KeyboardHandler::DefaulKeyRepeatInterval = 30 [static]

Specifies how many milliseconds by default should be waited until two repeated keys: once a key is hold long enough to repeat, this will be the time between two repeats of this key.

Definition at line 900 of file OSDLKeyboardHandler.h.

Referenced by SetMode().

const Ceylan::System::Millisecond KeyboardHandler::DefaultDelayBeforeKeyRepeat = 500 [static]

Specifies how long by default a key must be pressed before it begins repeating, in milliseconds.

Definition at line 888 of file OSDLKeyboardHandler.h.

Referenced by SetMode().

The documentation for this class was generated from the following files:
Generated on Mon Nov 29 14:05:52 2010 for OSDL by  doxygen 1.6.3
