OSDL::Rendering::MultimediaRenderer Class Reference

This renderer manages all multimedia concerns for the views it is in charge of. More...

#include <OSDLMultimediaRenderer.h>

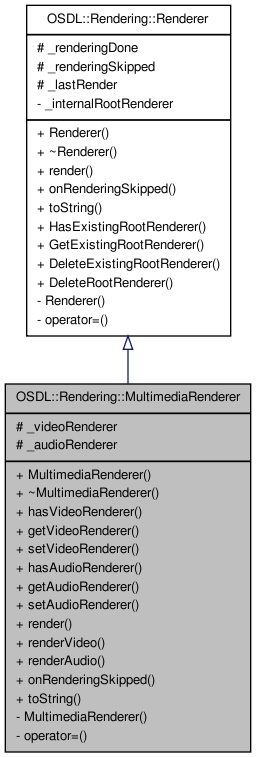

Inheritance diagram for OSDL::Rendering::MultimediaRenderer:

[legend]

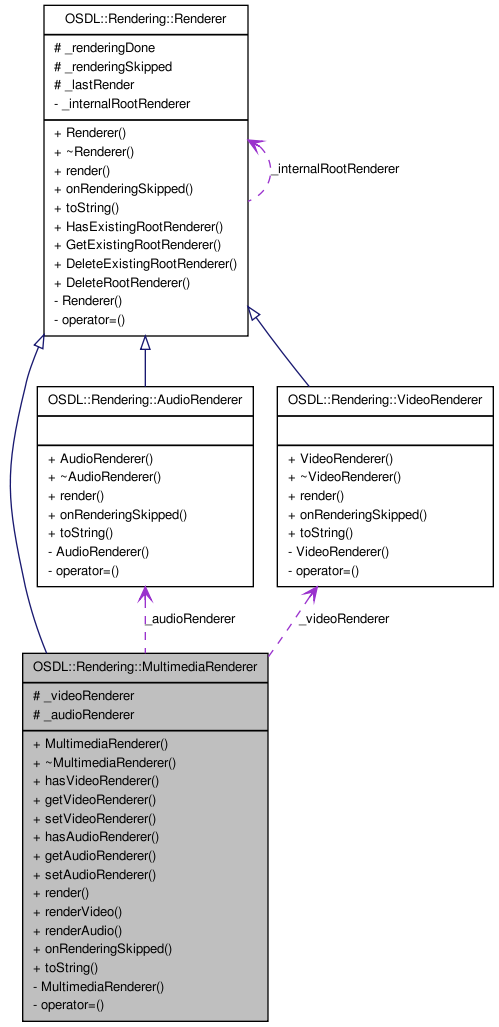

Collaboration diagram for OSDL::Rendering::MultimediaRenderer:

[legend]

List of all members.

Public Member Functions
	MultimediaRenderer (bool registerToScheduler=true)
	Constructs a new multimedia renderer.
virtual	~MultimediaRenderer () throw ()
	Virtual destructor, no view is destroyed.
virtual bool	hasVideoRenderer () const
	Returns whether a video renderer is available.
virtual VideoRenderer &	getVideoRenderer () const
	Returns the video renderer currently been used by this multimedia renderer.
virtual void	setVideoRenderer (VideoRenderer &newVideoRenderer)
	Sets the video renderer that should be used by this multimedia renderer.
virtual bool	hasAudioRenderer () const
	Returns whether a audio renderer is available.
virtual AudioRenderer &	getAudioRenderer () const
	Returns the audio renderer currently been used by this multimedia renderer.
virtual void	setAudioRenderer (AudioRenderer &newAudioRenderer)
	Sets the audio renderer that should be used by this multimedia renderer.
virtual void	render (Events::RenderingTick currentRenderingTick=0)
	Triggers the actual rendering of all views, for specified rendering tick, if any.
virtual void	renderVideo (Events::RenderingTick currentRenderingTick=0)=0
	Triggers the actual video rendering of all views, for specified rendering tick, if any.
virtual void	renderAudio (Events::RenderingTick currentRenderingTick=0)=0
	Triggers the actual audio rendering of all views, for specified rendering tick, if any.
virtual void	onRenderingSkipped (Events::RenderingTick skippedRenderingTick)
	Allows the renderer to be aware that a rendering step has to be skipped.
virtual const std::string	toString (Ceylan::VerbosityLevels level=Ceylan::high) const
	Returns an user-friendly description of the state of this object.
Static Public Member Functions
static bool	HasExistingRootRenderer ()
	Tells whether a root renderer is available.
static Renderer &	GetExistingRootRenderer ()
	Returns the one and only one root renderer instance that may be already available.
static void	DeleteExistingRootRenderer ()
	Deletes the existing root renderer.
static void	DeleteRootRenderer ()
	Deletes the root renderer, if any.
Protected Attributes
VideoRenderer *	_videoRenderer
	The internally used video renderer being used, if any.
AudioRenderer *	_audioRenderer
	The internally used audio renderer being used, if any.
RenderCount	_renderingDone
	Counts the number of renderings achieved.
RenderCount	_renderingSkipped
	Counts the number of renderings skipped.
Events::RenderingTick	_lastRender
	Records the last rendering tick.
Private Member Functions
	MultimediaRenderer (const MultimediaRenderer &source)
	Copy constructor made private to ensure that it will never be called.
MultimediaRenderer &	operator= (const MultimediaRenderer &source)
	Assignment operator made private to ensure that it will never be called.

Detailed Description

This renderer manages all multimedia concerns for the views it is in charge of.

It is triggered by the scheduler, so that at each rendering tick it gets activated.

This multimedia renderer delegates all graphical concerns to an internal video renderer, if any, and all sound concerns to an internal audio renderer, if any.

This kind of renderer is often used as a root renderer, since it is able to federate all multimedia needs for the views.

See also:: OSDL::Engine::Scheduler; Ceylan::View

Definition at line 75 of file OSDLMultimediaRenderer.h.

Constructor & Destructor Documentation

MultimediaRenderer::MultimediaRenderer ( bool registerToScheduler = true ) [explicit]

Constructs a new multimedia renderer.

Parameters:

registerToScheduler

iff true, then a scheduler is supposed to exist already, and this renderer is automatically registered to the scheduler so that it gets called at each rendering tick.

Exceptions:

RenderingException

if registerToScheduler is true and no scheduler is available.

Definition at line 56 of file OSDLMultimediaRenderer.cc.

MultimediaRenderer::~MultimediaRenderer ( ) throw () [virtual]

Virtual destructor, no view is destroyed.

Definition at line 67 of file OSDLMultimediaRenderer.cc.

OSDL::Rendering::MultimediaRenderer::MultimediaRenderer ( const MultimediaRenderer & source ) [explicit, private]

Copy constructor made private to ensure that it will never be called.

The compiler should complain whenever this undefined constructor is called, implicitly or not.

Member Function Documentation

void Renderer::DeleteExistingRootRenderer ( ) [static, inherited]

Deletes the existing root renderer.

Exceptions:

RenderingException

if not renderer was available.

Definition at line 185 of file OSDLRenderer.cc.

void Renderer::DeleteRootRenderer ( ) [static, inherited]

Deletes the root renderer, if any.

Definition at line 201 of file OSDLRenderer.cc.

AudioRenderer & MultimediaRenderer::getAudioRenderer ( ) const [virtual]

Returns the audio renderer currently been used by this multimedia renderer.

Exceptions:

RenderingException

iff no audio renderer is available.

Definition at line 120 of file OSDLMultimediaRenderer.cc.

References _audioRenderer.

Renderer & Renderer::GetExistingRootRenderer ( ) [static, inherited]

Returns the one and only one root renderer instance that may be already available.

Note:: The returned value is a reference and not a pointer, to help avoiding any abnormal deallocation by its users, that should never deallocate the root renderer.

Exceptions:

RenderingException

if there is no root renderer already available.

Note:: There is no 'GetRootRenderer' method that would create a root renderer if none was already set, since various renderers could be chosen as the root one.

Definition at line 173 of file OSDLRenderer.cc.

Referenced by OSDL::Rendering::AudioRenderer::AudioRenderer(), OSDL::Events::EventsModule::enterBasicMainLoop(), and OSDL::Rendering::VideoRenderer::VideoRenderer().

VideoRenderer & MultimediaRenderer::getVideoRenderer ( ) const [virtual]

Returns the video renderer currently been used by this multimedia renderer.

Exceptions:

RenderingException

iff no video renderer is available.

Definition at line 86 of file OSDLMultimediaRenderer.cc.

References _videoRenderer.

bool MultimediaRenderer::hasAudioRenderer ( ) const [virtual]

Returns whether a audio renderer is available.

Definition at line 111 of file OSDLMultimediaRenderer.cc.

References _audioRenderer.

bool Renderer::HasExistingRootRenderer ( ) [static, inherited]

Tells whether a root renderer is available.

Returns:: true iff a root renderer is already available.

Definition at line 164 of file OSDLRenderer.cc.

References OSDL::Rendering::Renderer::_internalRootRenderer.

Referenced by OSDL::Events::EventsModule::enterBasicMainLoop().

bool MultimediaRenderer::hasVideoRenderer ( ) const [virtual]

Returns whether a video renderer is available.

Definition at line 77 of file OSDLMultimediaRenderer.cc.

References _videoRenderer.

virtual void OSDL::Rendering::MultimediaRenderer::onRenderingSkipped ( Events::RenderingTick skippedRenderingTick ) [virtual]

Allows the renderer to be aware that a rendering step has to be skipped.

It may be a chance for it to trigger counter-measures, such as decreasing the level of detail in order not to slow down the whole process.

Parameters:

skippedRenderingTick

the rendering tick that had to be skipped.

Reimplemented from OSDL::Rendering::Renderer.

MultimediaRenderer& OSDL::Rendering::MultimediaRenderer::operator= ( const MultimediaRenderer & source ) [private]

Assignment operator made private to ensure that it will never be called.

The compiler should complain whenever this undefined operator is called, implicitly or not.

virtual void OSDL::Rendering::MultimediaRenderer::render ( Events::RenderingTick currentRenderingTick = 0 ) [virtual]

Triggers the actual rendering of all views, for specified rendering tick, if any.

This method will manage both the video and audio renderings, should the dedicated specialized renderers be available.

Parameters:

currentRenderingTick

the rendering tick corresponding to this render step. If the renderer is called from a basic event loop (no scheduler is used), then the rendering tick is meaningless and is always zero.

See also:: renderVideo, renderAudio

Reimplemented from OSDL::Rendering::Renderer.

virtual void OSDL::Rendering::MultimediaRenderer::renderAudio ( Events::RenderingTick currentRenderingTick = 0 ) [pure virtual]

Triggers the actual audio rendering of all views, for specified rendering tick, if any.

This method will manage the audio rendering, and is to be called by the overall render method, implemented by all renderers.

Parameters:

currentRenderingTick

the rendering tick corresponding to this render step. If the renderer is called from a basic event loop (no scheduler is used), then the rendering tick is meaningless and is always zero.

See also:: render, renderVideo

Note:: This method is used instead of calling directly the internal audio renderer so that informations can be more easily shared between the multimedia renderer and its specialized counterparts.

virtual void OSDL::Rendering::MultimediaRenderer::renderVideo ( Events::RenderingTick currentRenderingTick = 0 ) [pure virtual]

Triggers the actual video rendering of all views, for specified rendering tick, if any.

This method will manage the video rendering, and is to be called by the overall render method, implemented by all renderers.

Parameters:

currentRenderingTick

the rendering tick corresponding to this render step. If the renderer is called from a basic event loop (no scheduler is used), then the rendering tick is meaningless and is always zero.

See also:: render, renderAudio

Note:: This method is used instead of calling directly the internal video renderer so that informations can be more easily shared between the multimedia renderer and its specialized counterparts.

void MultimediaRenderer::setAudioRenderer ( AudioRenderer & newAudioRenderer ) [virtual]

Sets the audio renderer that should be used by this multimedia renderer.

Parameters:

newAudioRenderer

the new audio renderer.

If a renderer was already registered, it is deallocated first: this renderer takes ownership of its sub-renderers and manages their life cycle.

Definition at line 133 of file OSDLMultimediaRenderer.cc.

References _audioRenderer.

Referenced by OSDL::Rendering::AudioRenderer::AudioRenderer().

void MultimediaRenderer::setVideoRenderer ( VideoRenderer & newVideoRenderer ) [virtual]

Sets the video renderer that should be used by this multimedia renderer.

Parameters:
